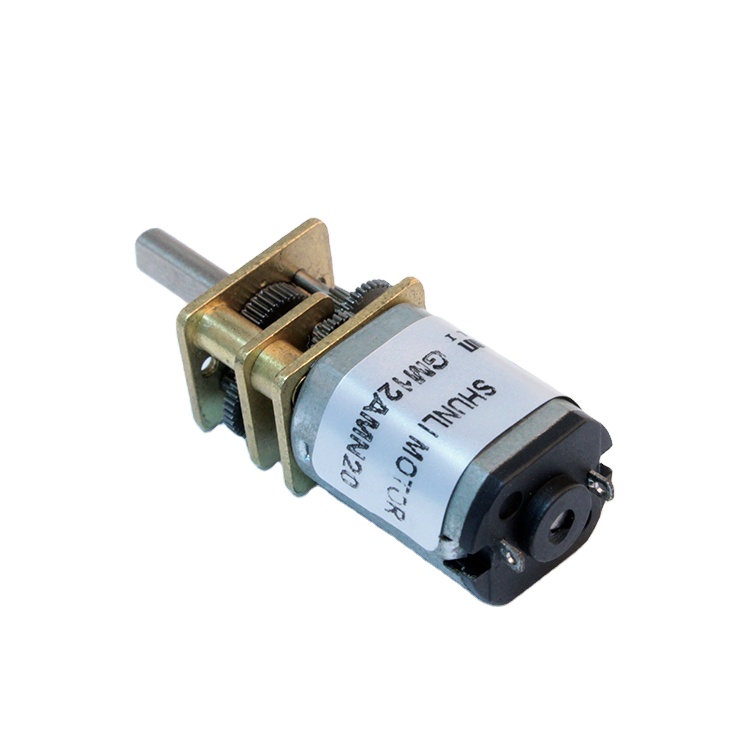

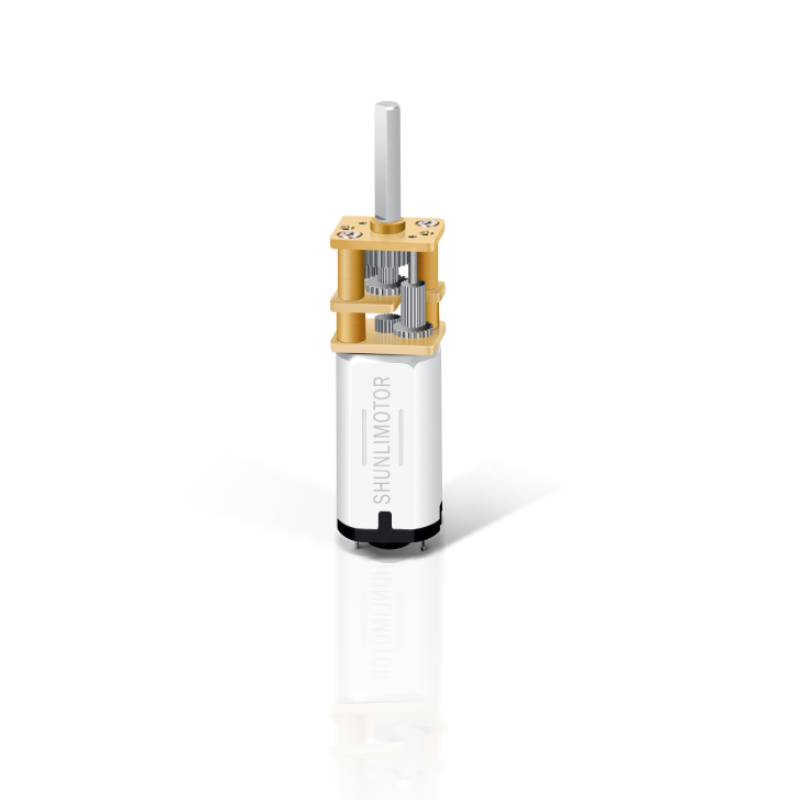

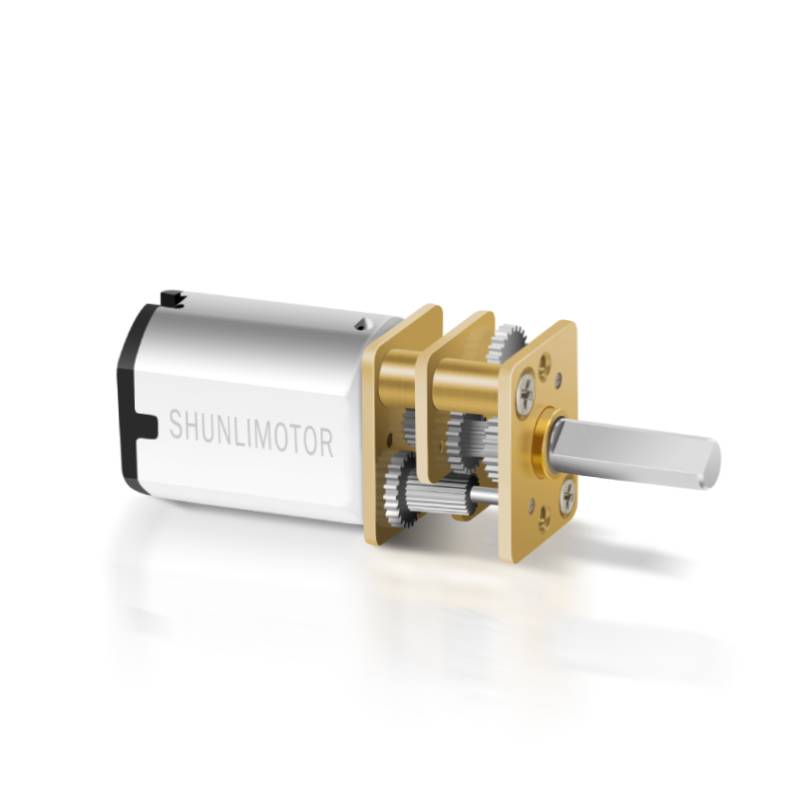

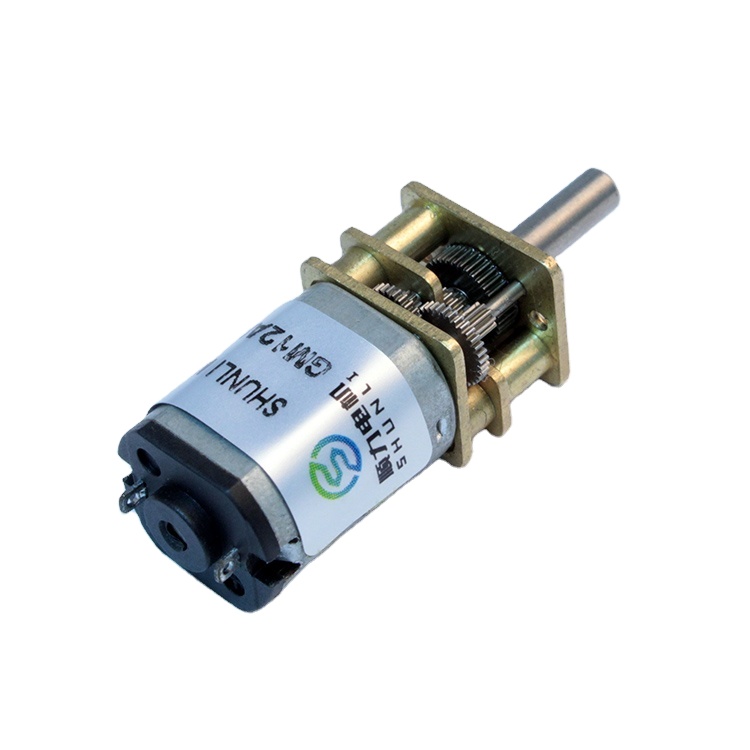

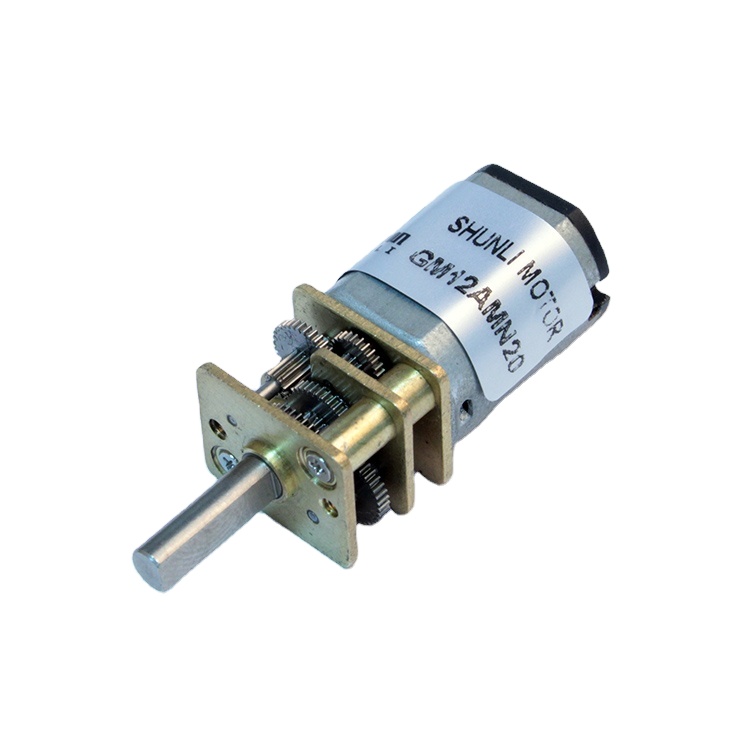

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor
Product Description
Product Description
12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

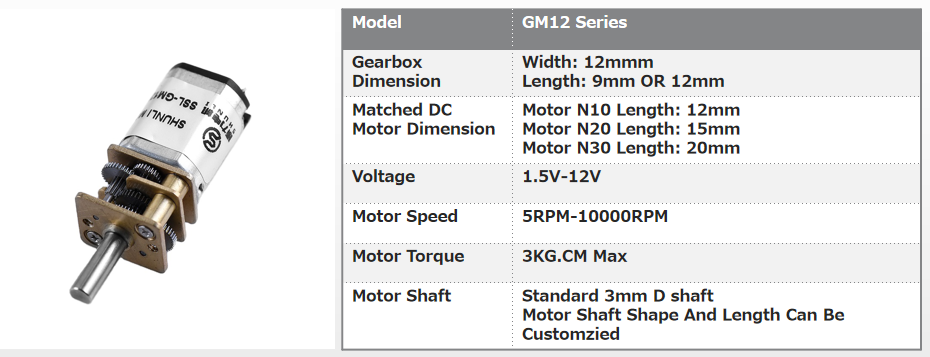

Product Details

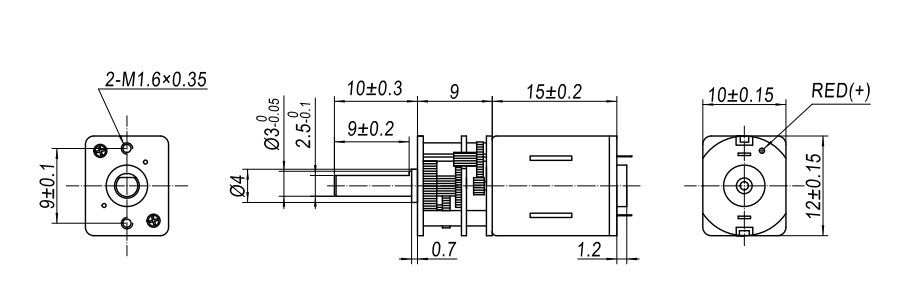

Reference Drawing

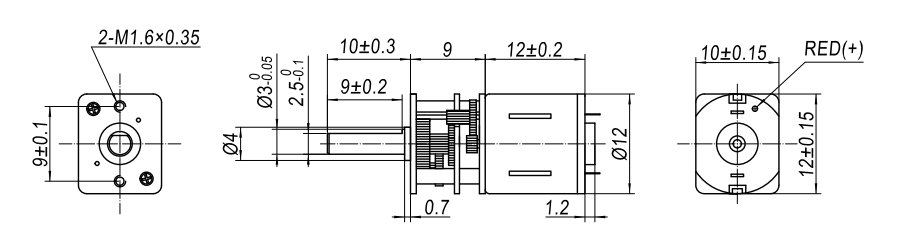

GM12AMN10
GM12AMN20

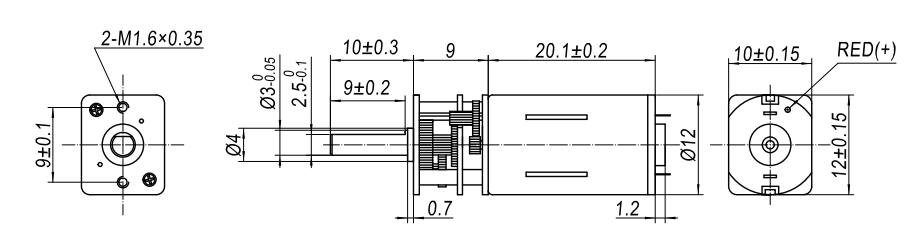

GM12AMN30
Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1: 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
Gearbox Technical Data
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|
| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/50K/63K/100K | 110K/150K/210K/250K/298K/380K | 372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
Application
Certifications
Customer Evaluation
Why Choose Us
1. Production Capability
We are a factory specializing in producing motors for more than 14 years. With three factories, a professional R&D team, mature management, and experienced engineering staff, we provide high-performance solutions and a pleasant business experience.
2. Quality Control
In order to confirm product quality, every step from incoming materials to final shipment is carefully checked. Quality is the absolute basis of our development.
Our Services
Gold Seller Status
Possessing high industry credibility and verified manufacturing history.
Possessing high industry credibility and verified manufacturing history.
100% On-Time Delivery
Timely delivery rates ensure your manufacturing schedule remains on track.
Timely delivery rates ensure your manufacturing schedule remains on track.
Fast Turnaround
Standard samples are produced within 2 weeks. Customized samples are prepared within 3 weeks.
Standard samples are produced within 2 weeks. Customized samples are prepared within 3 weeks.
Responsive Communication
Your technical requests and inquiries will receive replies within 2 hours.
Your technical requests and inquiries will receive replies within 2 hours.

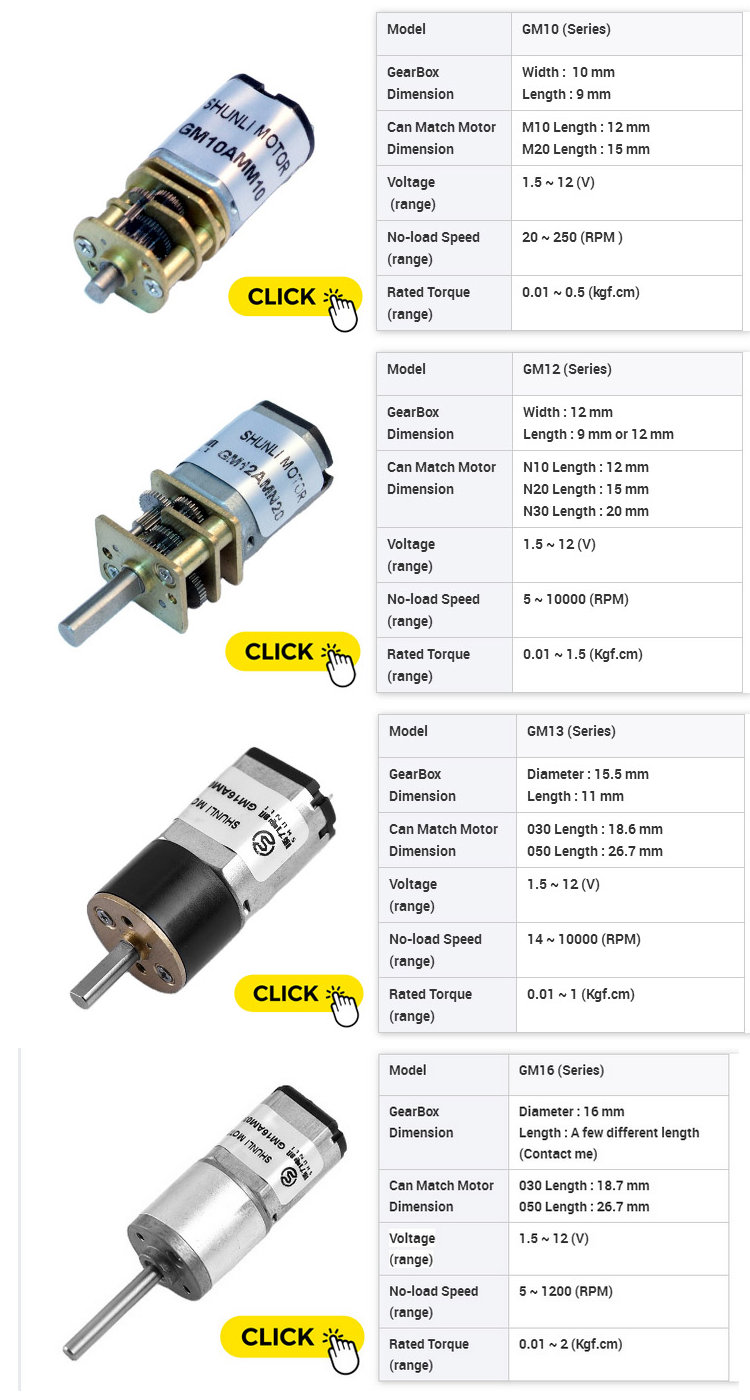

Related Products
Frequently Asked Questions (FAQ)
Are you a trading company or manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
What payment terms do you support?
We offer online assurance orders which allow payment via Master Card, Visa, etc. We also accept PayPal and Wire Transfer (TT).
Can you customize a motor if I cannot find a suitable model?
Yes, we customize specific motor designs and technical specifications according to our customer’s detailed requirements.
Do you have quality and safety certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant certificates. We can apply for additional regional standards if required.
How is your quality control structured?
We maintain dedicated inspecting personnel at every production line stage. Completed motors are tested utilizing professional equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Level meters.
What is the turnaround time for sample requests?
Standard samples are generally completed within 2 weeks. Custom specifications require approximately 3 weeks to engineer and manufacture.
