Asynchronous Motor Shaded Pole Ac Fan Parts Gear Motor China Low Speed Ac Shaded Pole Gear Motor

Product Description

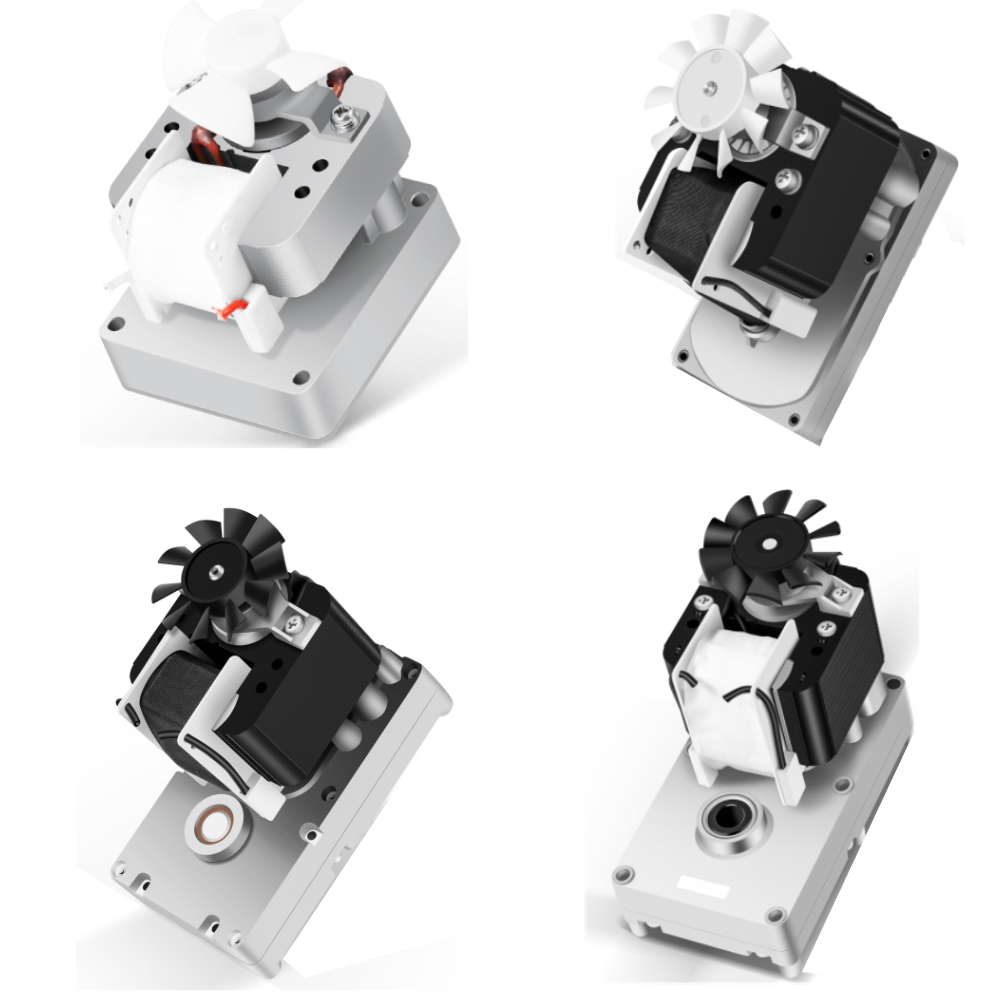

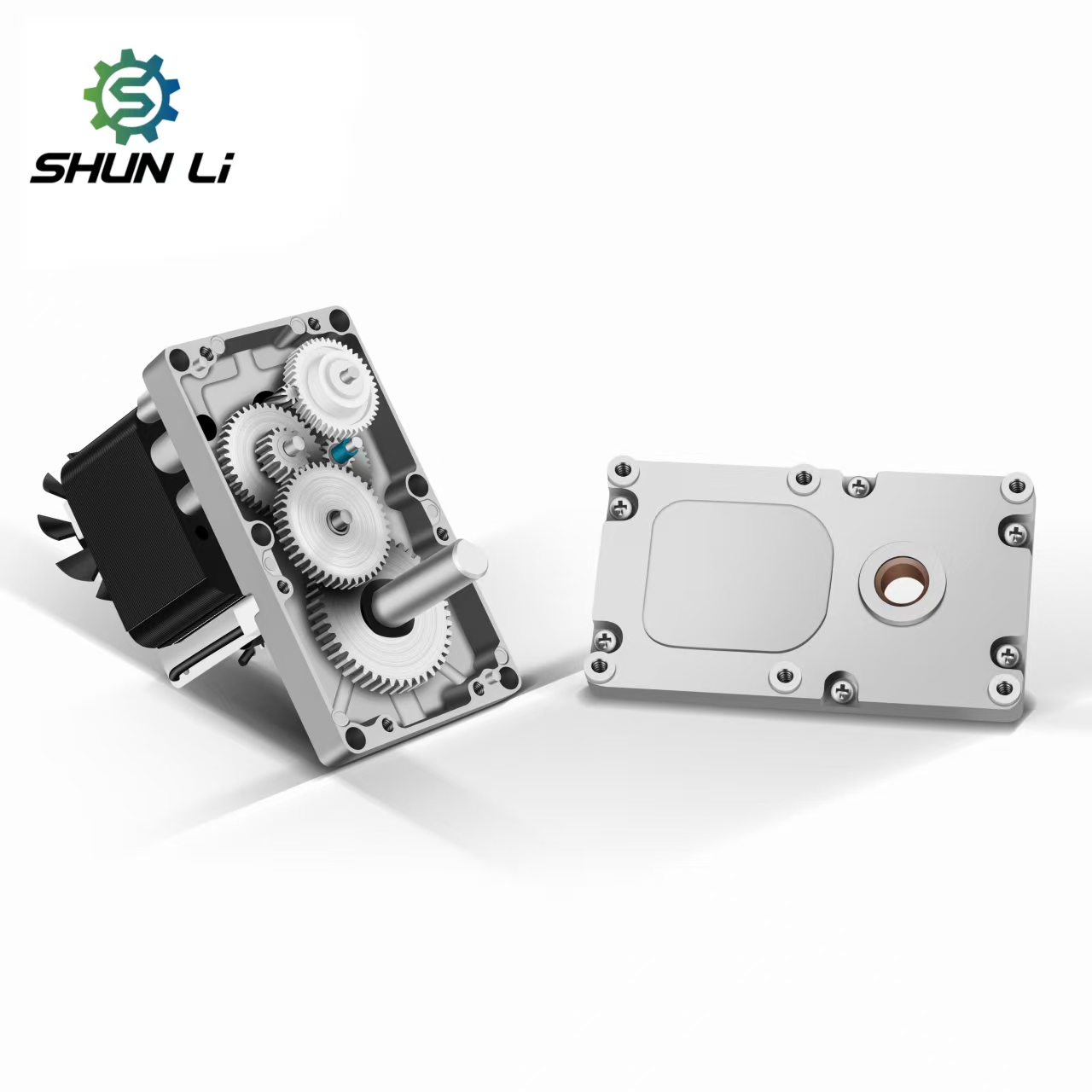

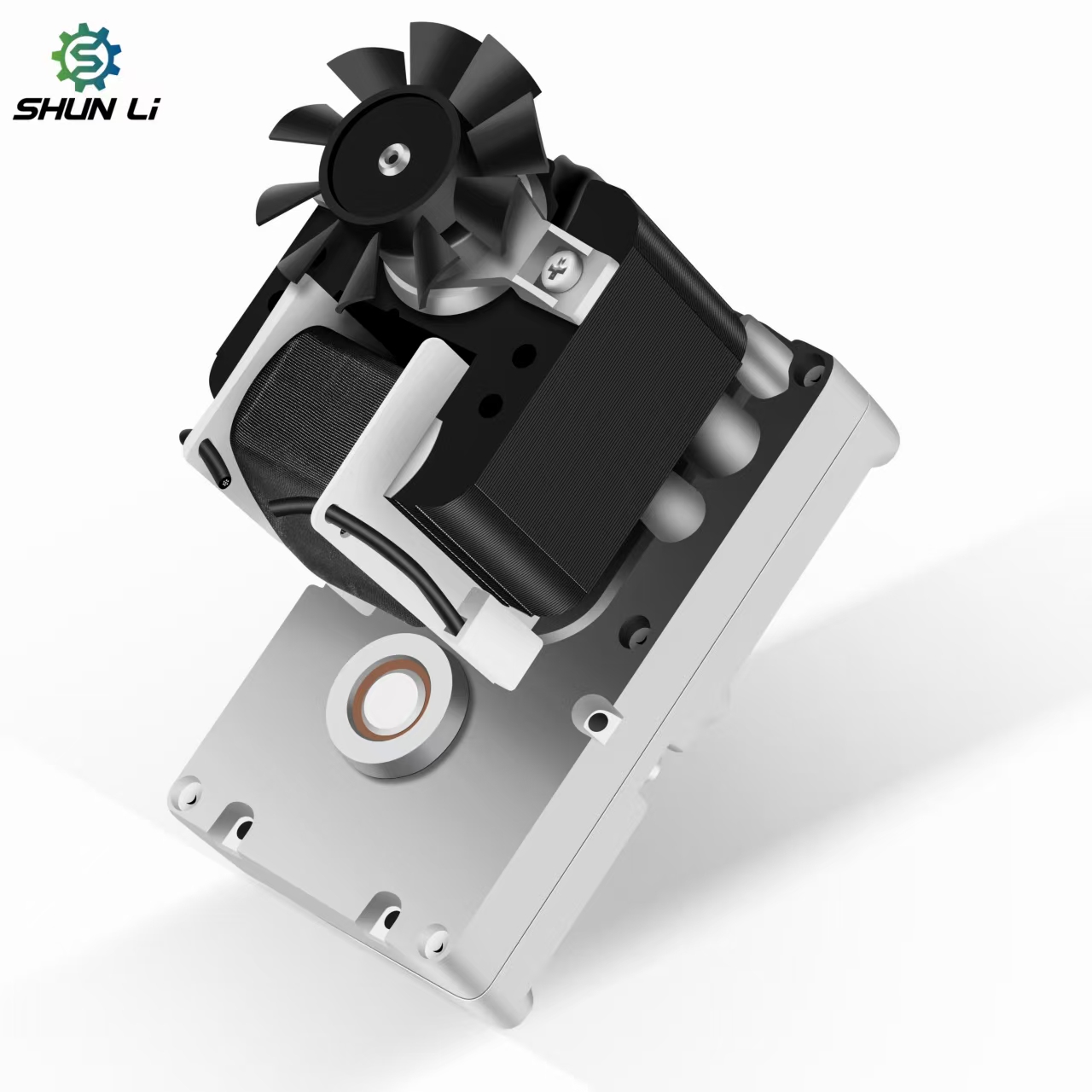

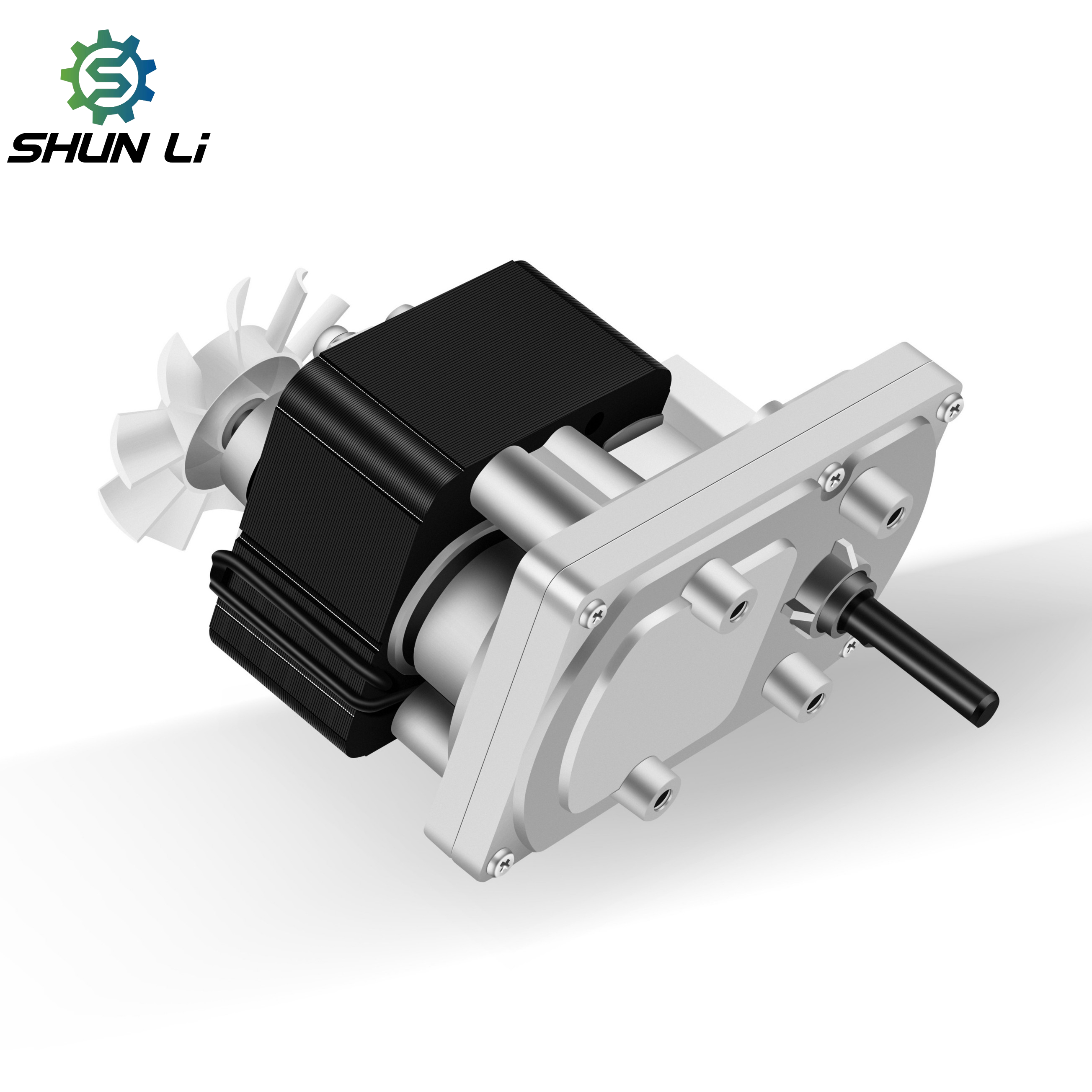

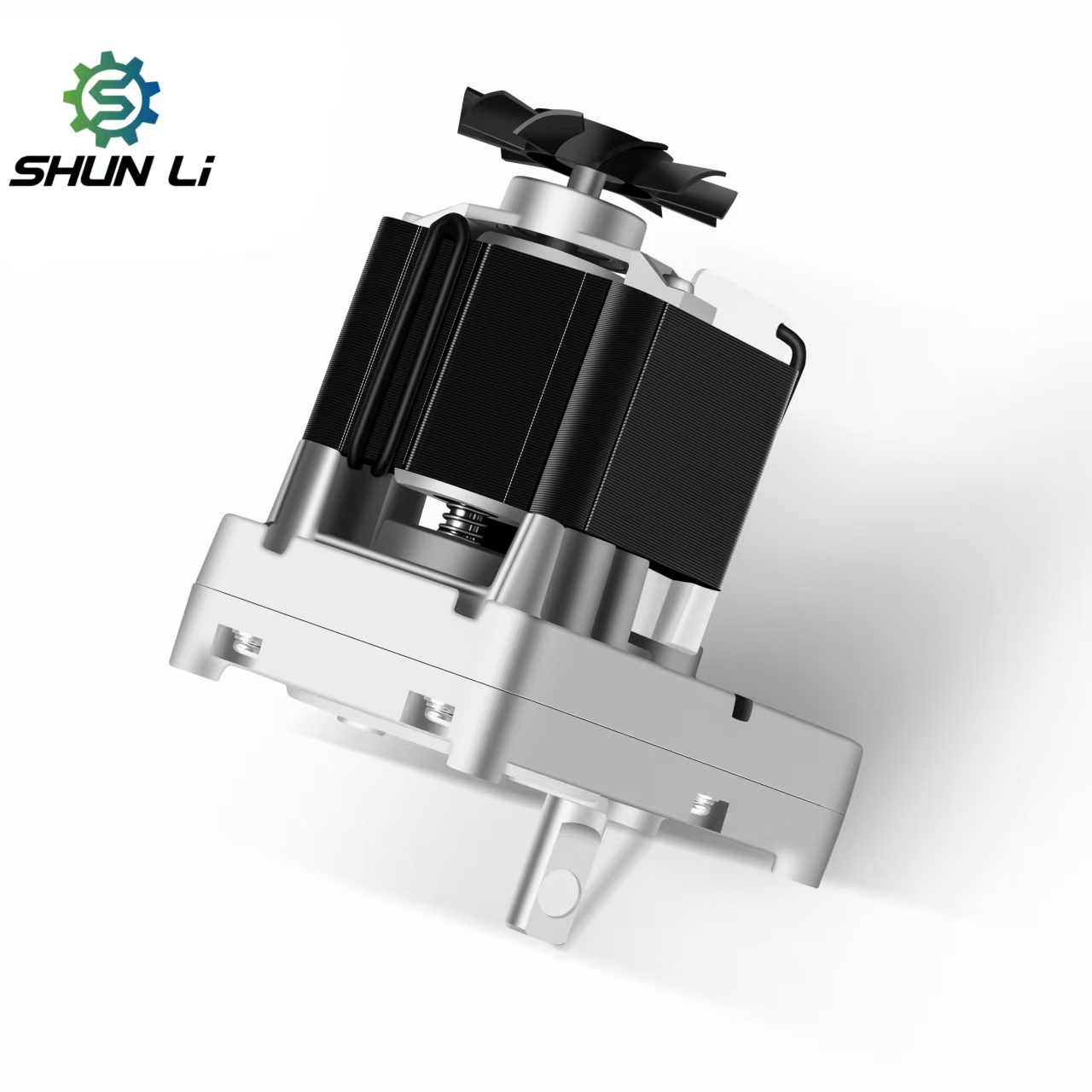

Shaded Pole Gear Motor Showcase

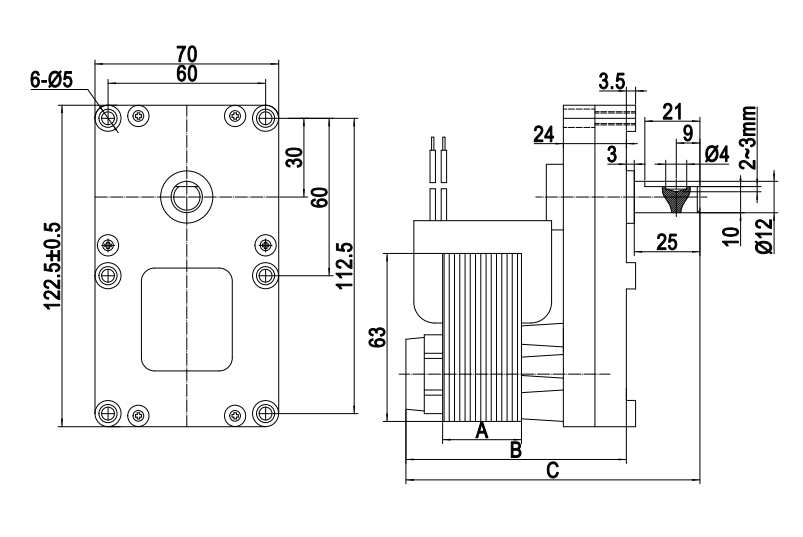

Shaded Pole Gear Motor Dimensions
Product Model Shaded Pole Gear Motor
Ratio 1:100~1:1800
Speed 1.6RPM-30RPM
Voltage 100V~240V / 50HZ~60HZ
Rated Torque 0.5 N.m / 15 N.m
Motor Shaft Shaft Diameter 8mm~12mm
Customization Motor shaft shape, length, and motor parameters can be customized.
Motor Characteristics Curve

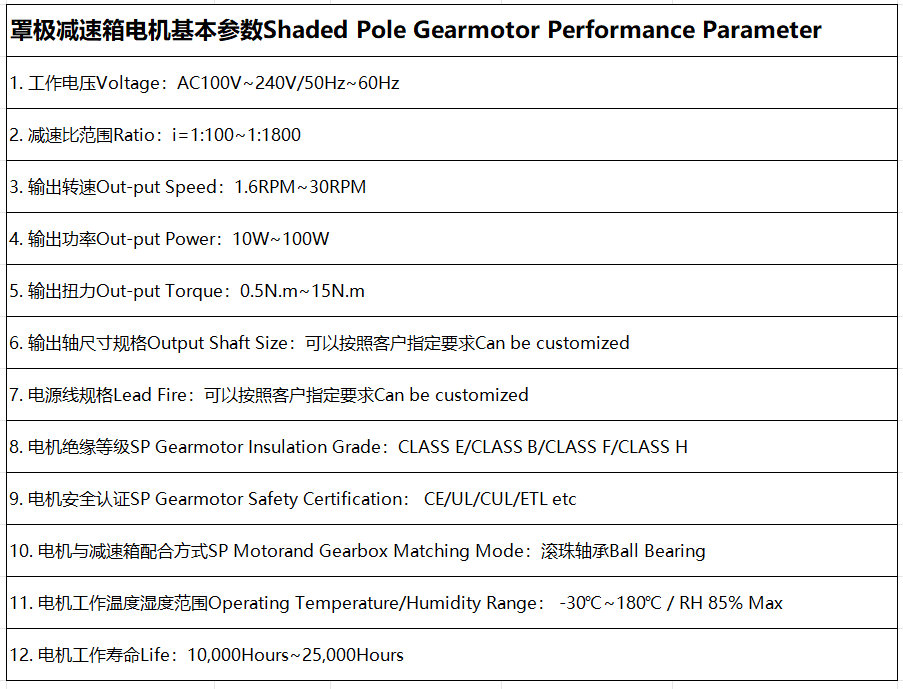

Motor Specification Sheet
Motor Design Diagram
Motor Application Fields
Production Process View 1 Production Process View 2 Quality Control Testing Raw Materials Warehouse Finished Products Display Packaging and Delivery
FAQ
Q Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

Q What is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, which can be paid online via Credit Cards (Master Card, Visa, etc.). Customers can also pay with PayPal, TT, and other methods.

Q I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' specific requirements.

Q Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other standards. If you have additional certification requirements, we can apply for them accordingly.

Q How is your Quality Control managed?

We have professional checking staff on every production line process. After finishing the motor assembly, we use specialized quality testing machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

Q Can the motor shaft shape and length be customized?

Yes, both the motor shaft shape, length, and motor technical parameters can be fully customized based on your application needs.
