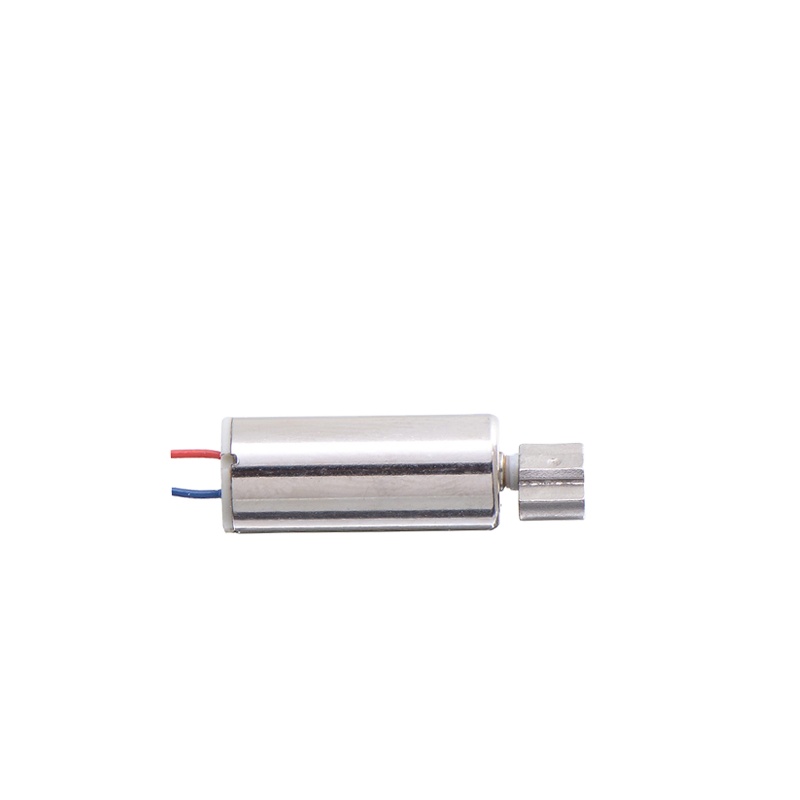

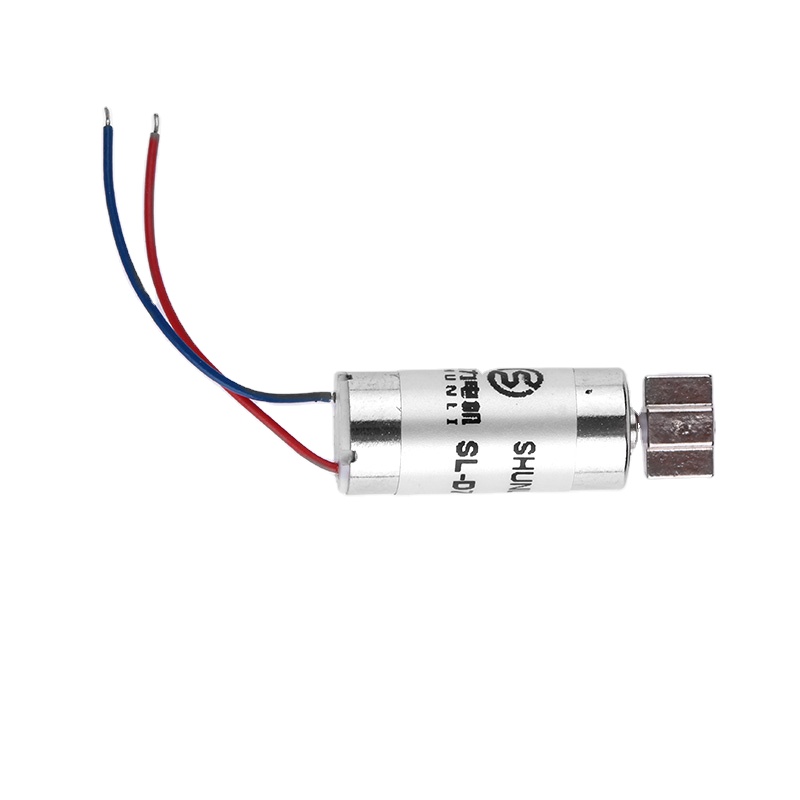

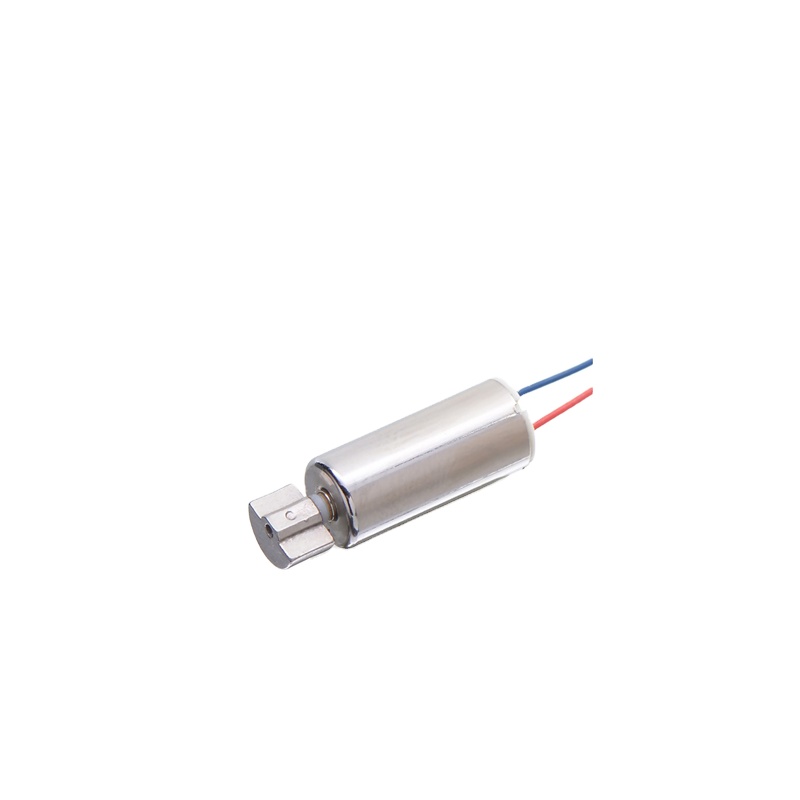

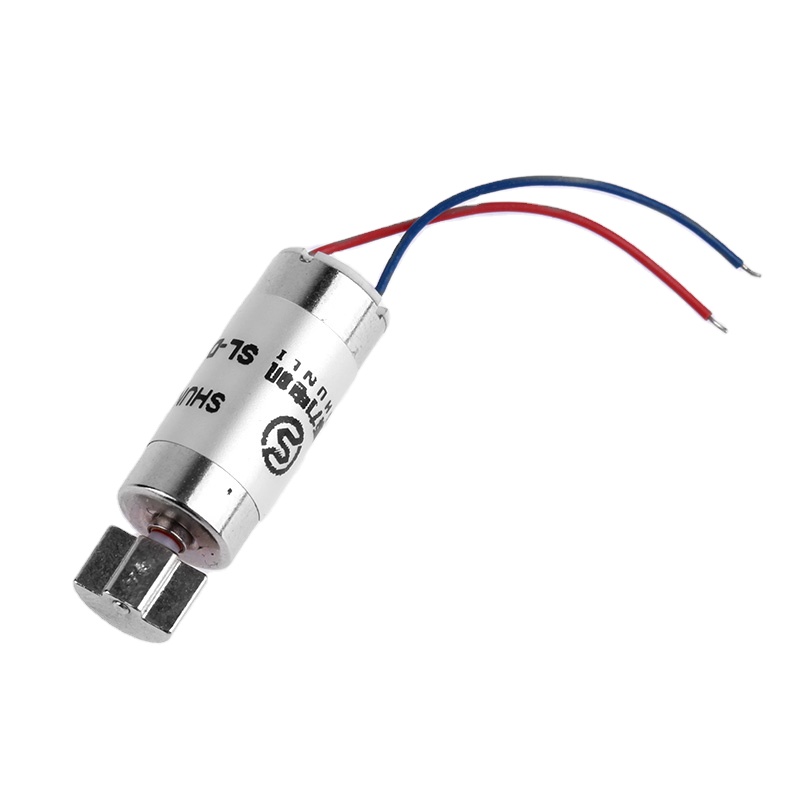

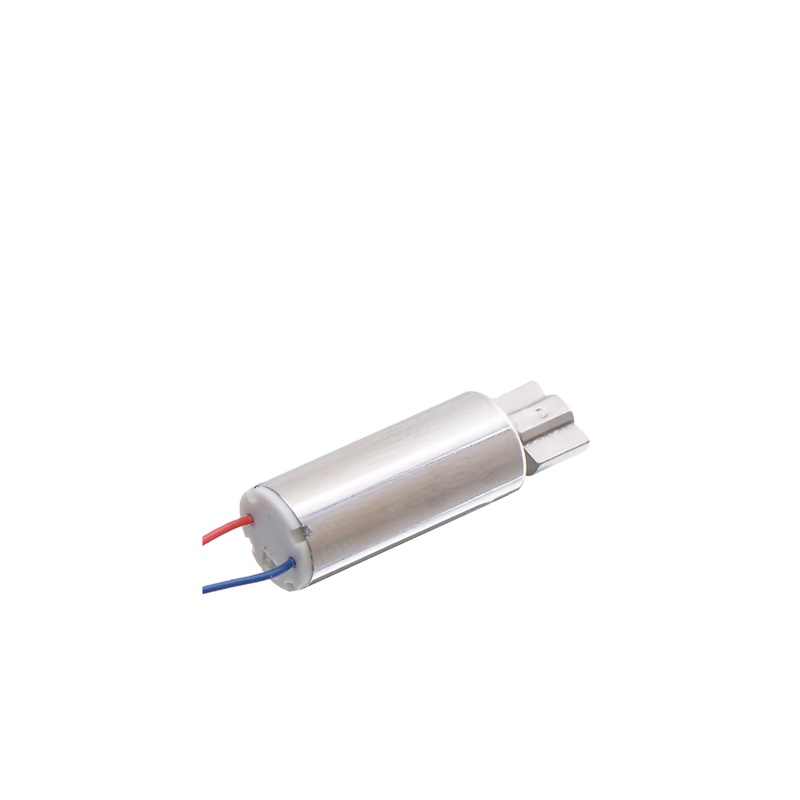

Shunli Custom Small Dc Motor Brush Low Rpm 2.4v 3.7v 5v Dc Electric Mini Vibrator Motor Adult Toy
Product Description
Custom small dc motor brush Low rpm 2.4v 3.7v 5v dc electric mini vibrator motor adult toy
🔥Promotion
| MODEL | RATED | NO LOAD | RATED | STALL | ||
|---|---|---|---|---|---|---|
| VOLTAGE | SPEED | CURRENT | SPEED | CURRENT | CURRENT | |
| V | r/min | mA | r/min | mA | mA | |
| 0724 | 1.5 | 19900 | 45 | 17600 | 108 | 480 |
| 0724 | 5 | 20000 | 33 | 18500 | 65 | 400 |
| 0724 | 3 | 25300 | 28 | 21300 | 89 | 370 |
Frequently Asked Questions
What are the available voltage options for this mini vibrator motor?
These micro vibration DC motors support custom configurations, with typical rated operating voltages of 1.5V, 2.4V, 3V, 3.7V, and 5V to match various power supplies.
What are the primary applications for these small dc brush motors?
They are specifically optimized for compact, low-power applications requiring strong vibration feedback, such as adult toys, beauty instruments, personal care products, and miniature massagers.
Can the speed and current settings of these motors be customized?
Yes, parameters like rated voltage, no-load speed (ranging from 19,900 to 25,300 r/min), and operating currents can be tailored according to your application specifications.
What is the stall current for the 0724 model series?
For the 0724 series, the stall current values range between 370mA to 480mA, depending on the rated input voltage configured for your specific model.
Are these micro motors equipped with precious metal brushes?
Yes, these micro motors feature high-quality brush systems that ensure low RPM stability, low electrical noise, and high reliability during continuous operation.
