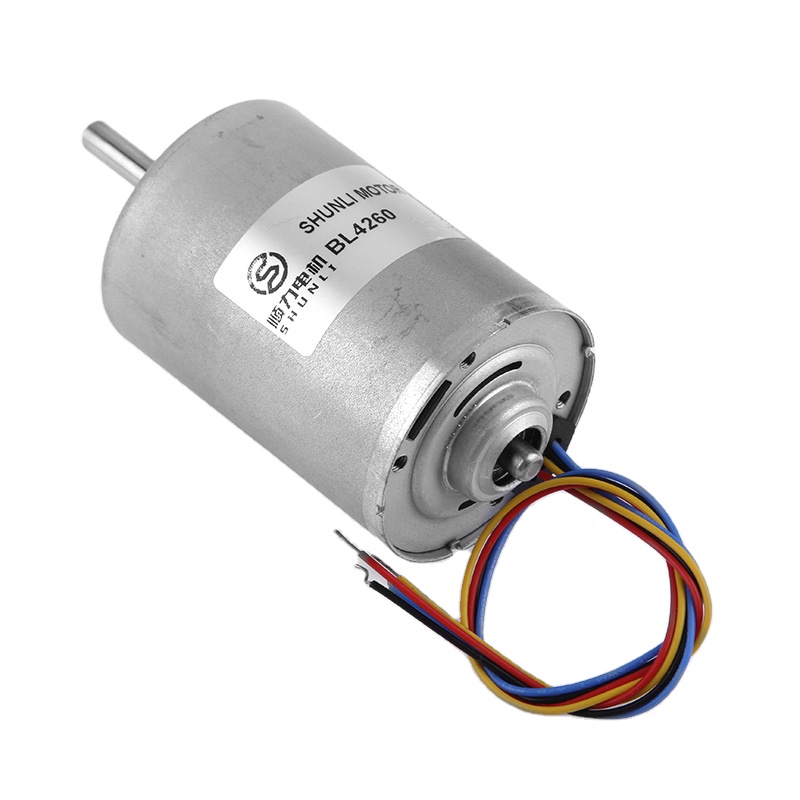

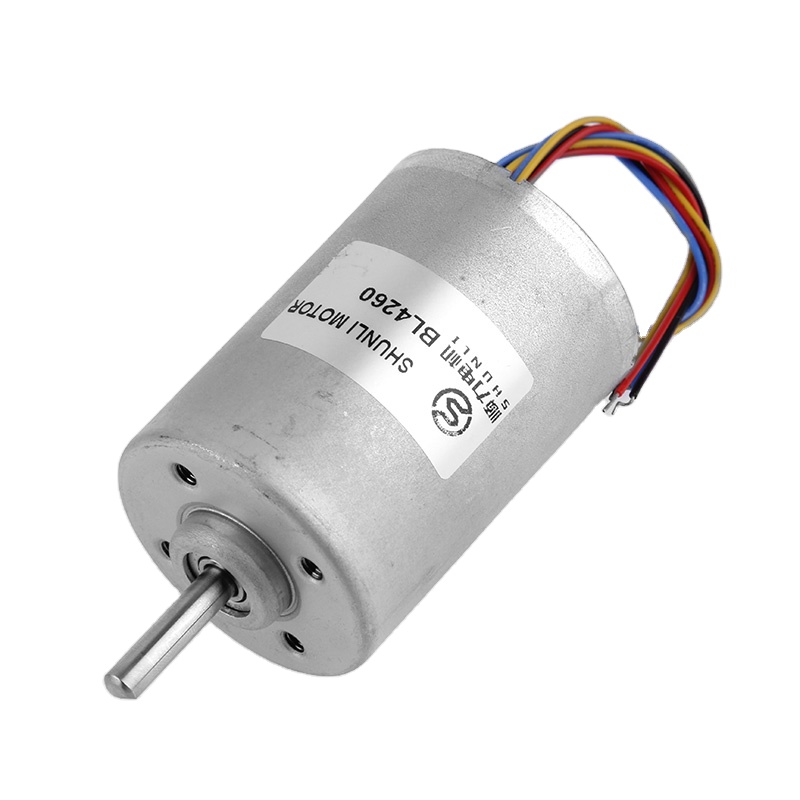

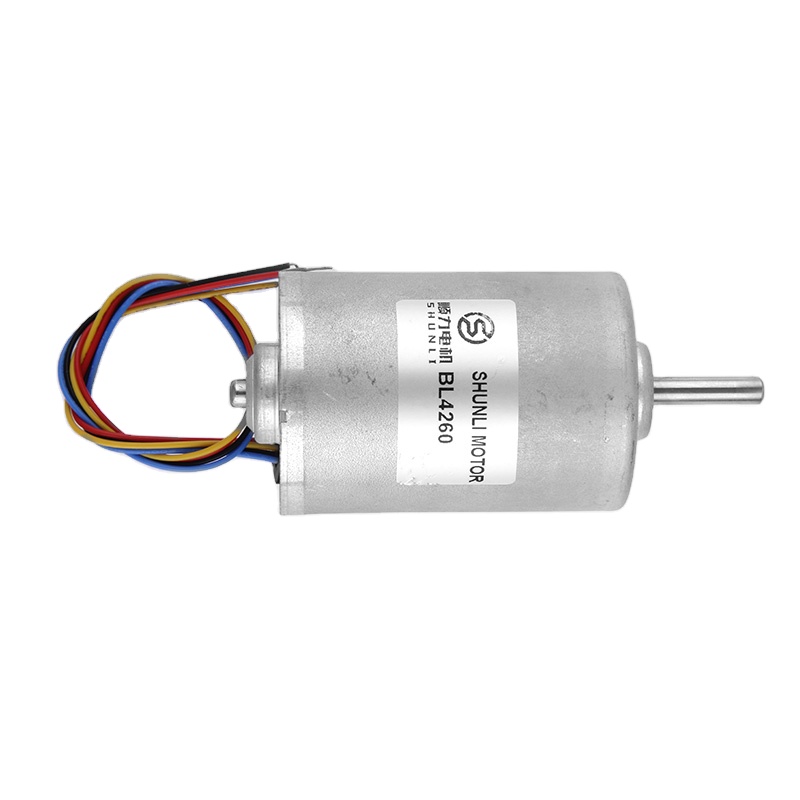

Power Brushless Dc Motor 12v 18v 24v 1500 RPM 3000 RPM 4000 RPM Micro Motor Permanent Magnet 5MM High Torque Brushless Motor
Product Description
12v 18v 24v power brushless dc motor 1500 RPM 3000 RPM 4000 RPM for Washing machine/RC plane/DIY Technical tool/fan/Robot/Pump
Product Details

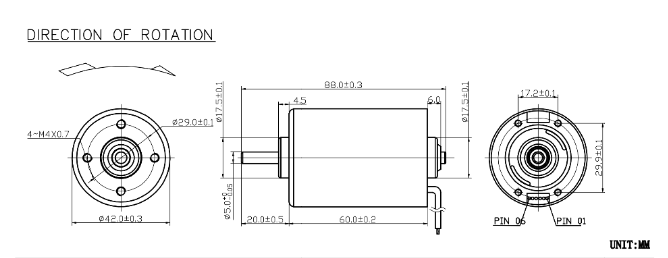

Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
Reference Datasheet
Frequently Asked Questions (FAQ)
What are the primary applications for this brushless DC motor?
This high-torque micro brushless DC motor is ideal for various applications including washing machines, RC planes, DIY technical tools, fans, robotic systems, and water pumps.
What voltage options are supported by this motor?
The motor is compatible with multiple voltage ratings, including 12V, 18V, and 24V configurations, depending on your system requirements.
What are the standard RPM specifications?
It features multiple speed options including 1500 RPM, 3000 RPM, and 4000 RPM, allowing you to match the speed output to your specific application needs.
What is the pin out design configuration for this BLDC motor?
The motor utilizes a 5-pin configuration arrangement: Pin 1 (VCC), Pin 2 (FG), Pin 3 (CW/CCW direction control), Pin 4 (GND), and Pin 5 (PWM speed control signal).
What makes a permanent magnet brushless motor better than a brushed motor?
Permanent magnet brushless DC motors offer significantly higher efficiency, a longer operational lifetime, lower acoustic noise, and better speed stability compared to standard brushed alternatives.
How is the speed of this micro motor controlled?
The motor speed can be controlled precisely via the PWM pin (Pin 5) by applying a Pulse Width Modulation signal to adjust the output RPM dynamically.
