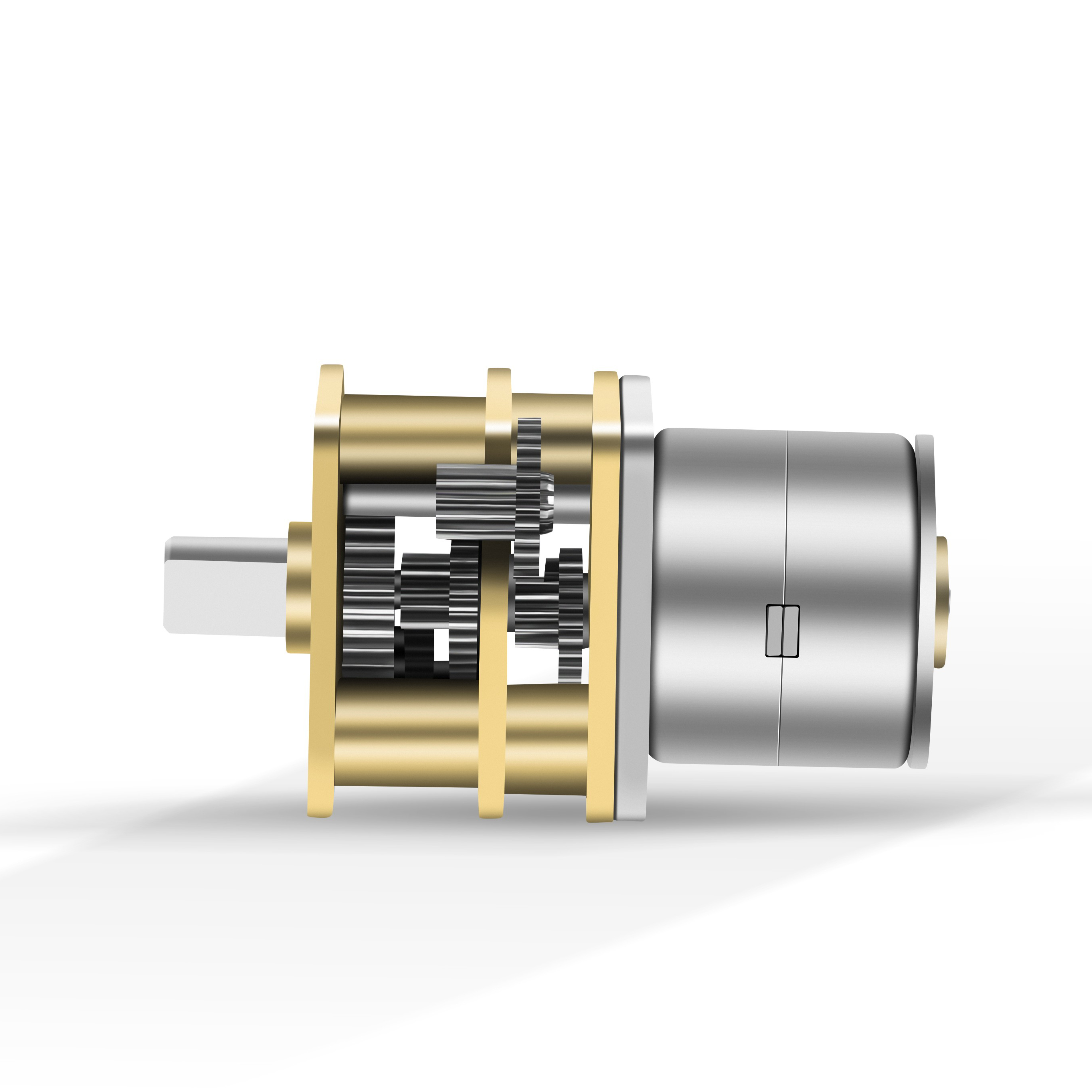

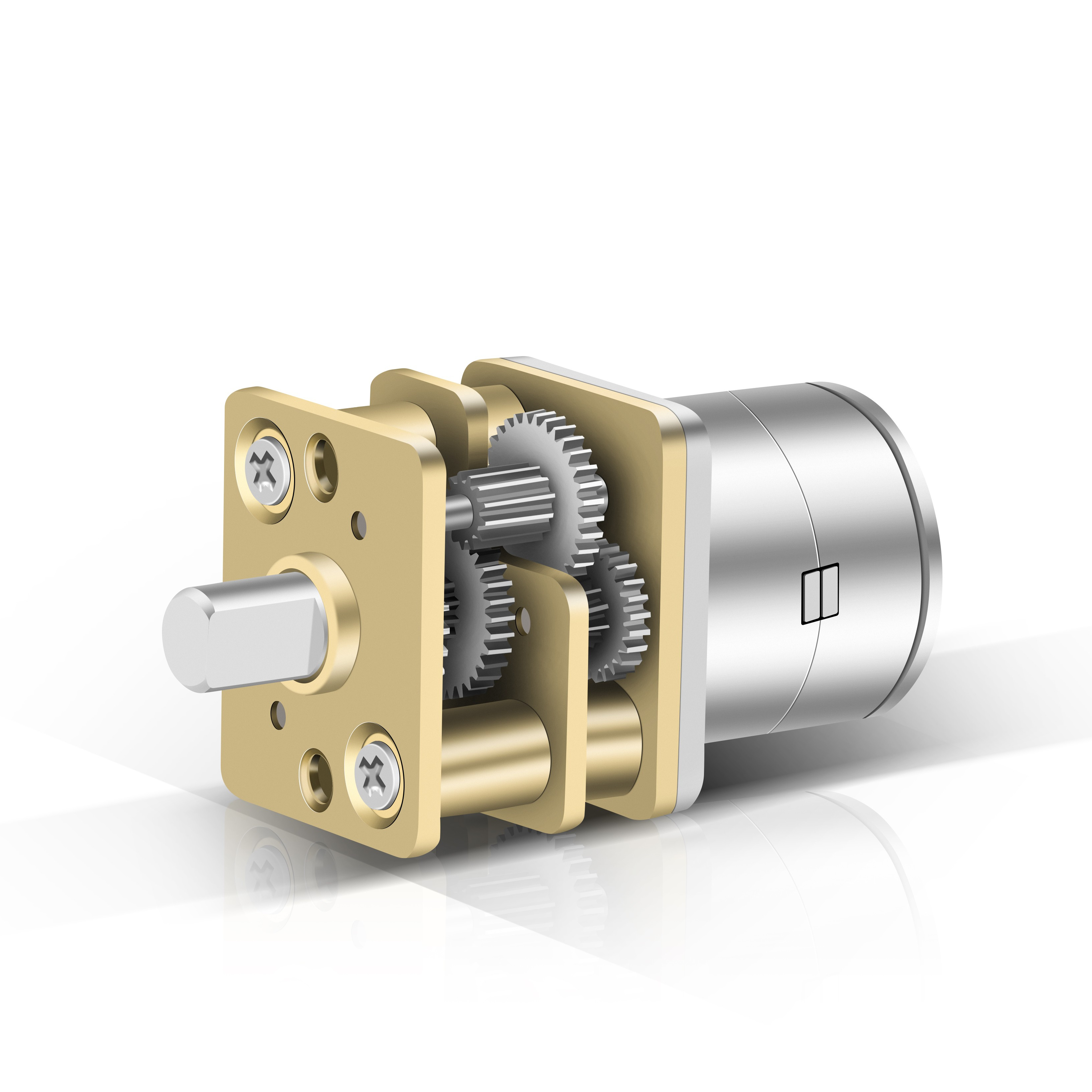

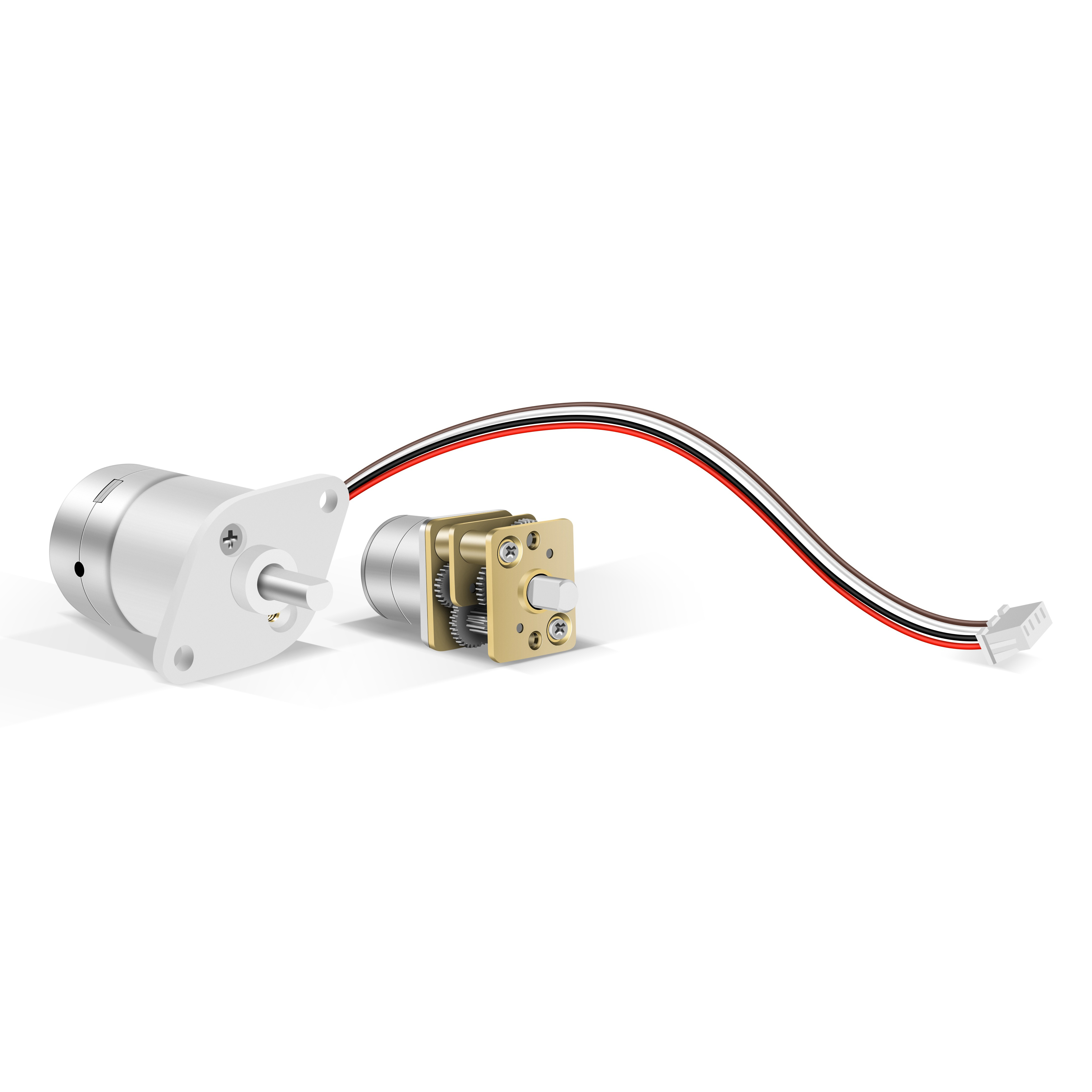

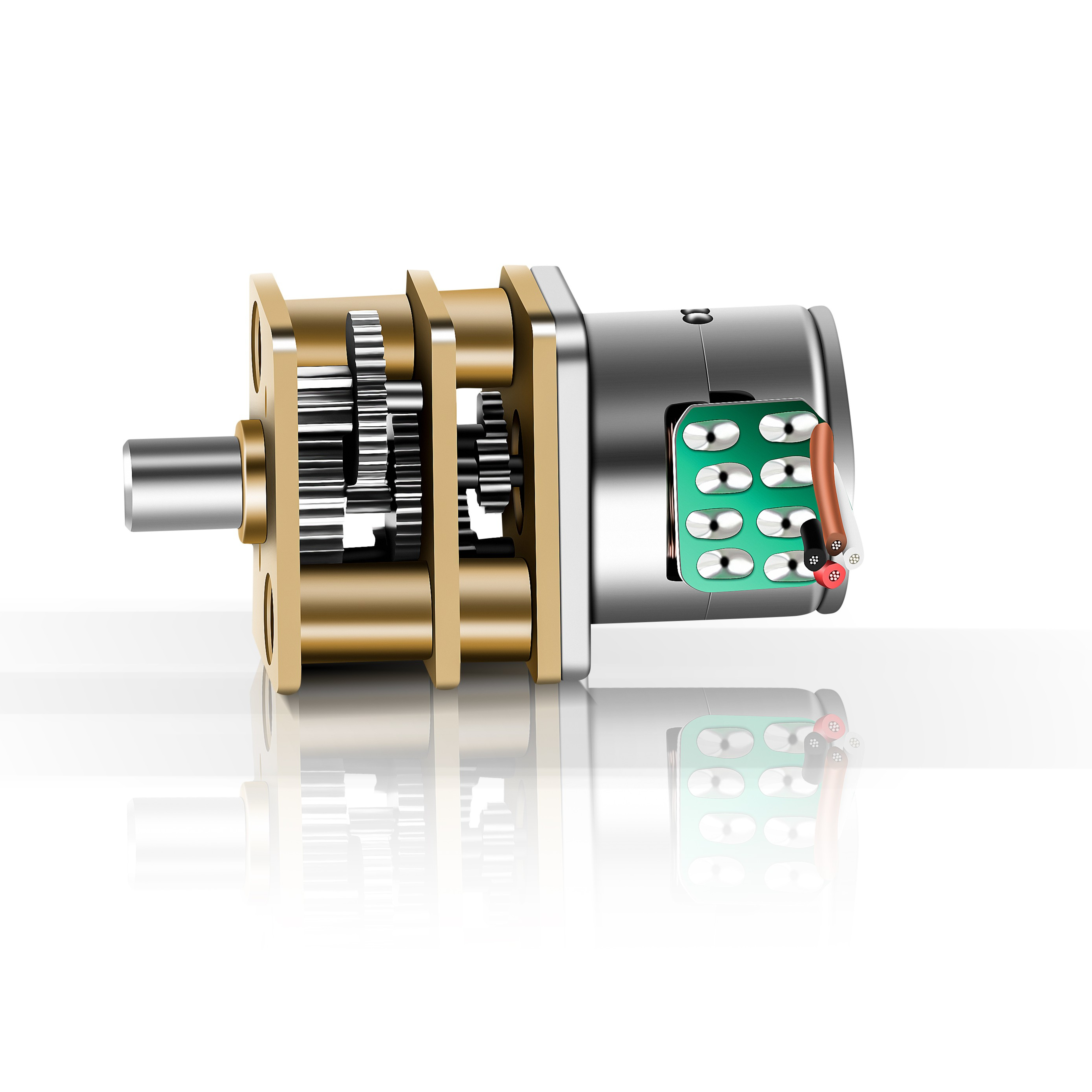

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Product Description
📦 Product Description

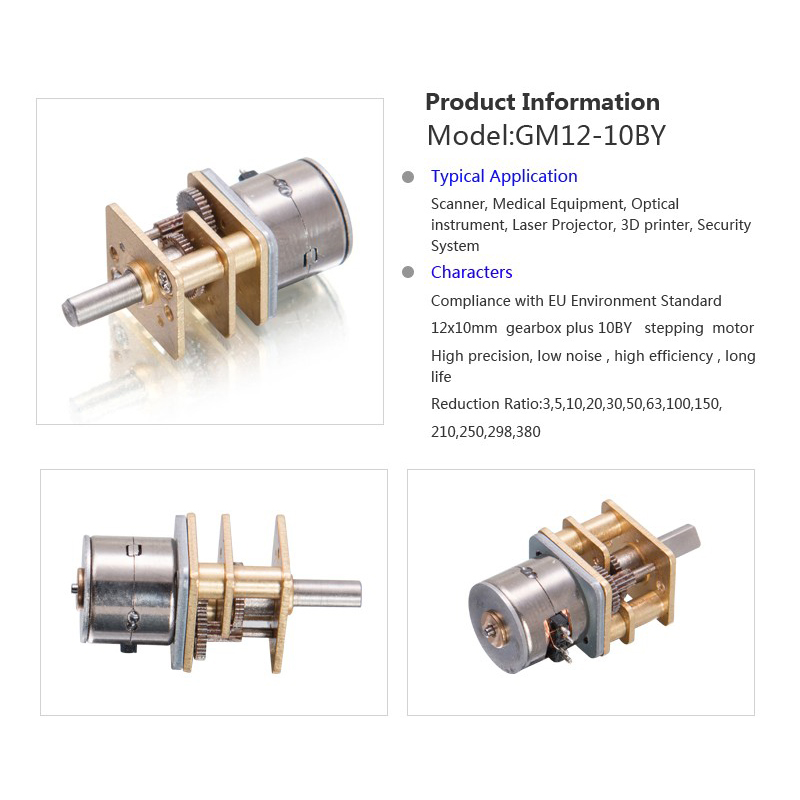

Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment

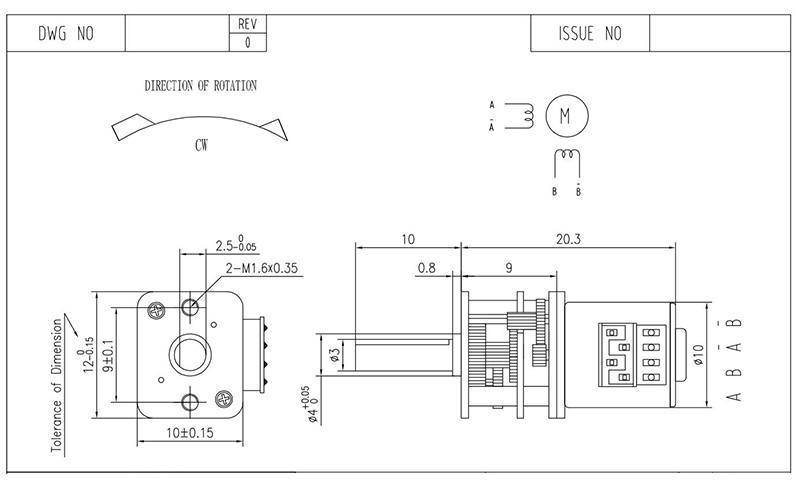

Reference Drawing — GM12-10BY
📊 Reference Datasheet
Gearbox Technical Data
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ratio | 4K / 4.75K | 16K / 19K / 22.6K | 64K / 74K / 90K / 107K | 256K / 304K / 361K / 429K / 509K | 1024K / 1216K / 1444K / 1715K / 2036K / 2418K |
| Gearbox Length "L" (mm) | 13.3 | 16.8 | 20.3 | 23.8 | 27.3 |
| Max. Rated Torque | 1.0 Kgf.cm | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm |
| Max. Gear Breaked Torque | 3.5 Kgf.cm | 6.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm |
| Gearbox Efficiency | 80%~90% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load State | Rated State | Stall State | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (N.m / Kgf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GMP22M130-64K | 1 : 64 | 6 VDC | 138 | ≤ 160 | 110 | ≤ 450 | 0.095 / 0.95 | ≤ 1700 | 0.42 / 4.2 |
| GMP22M180-256K | 1 : 256 | 5 VDC | 38 | ≤ 180 | 30 | ≤ 1050 | 0.32 / 3.2 | ≤ 3900 | 1.25 / 12.5 |

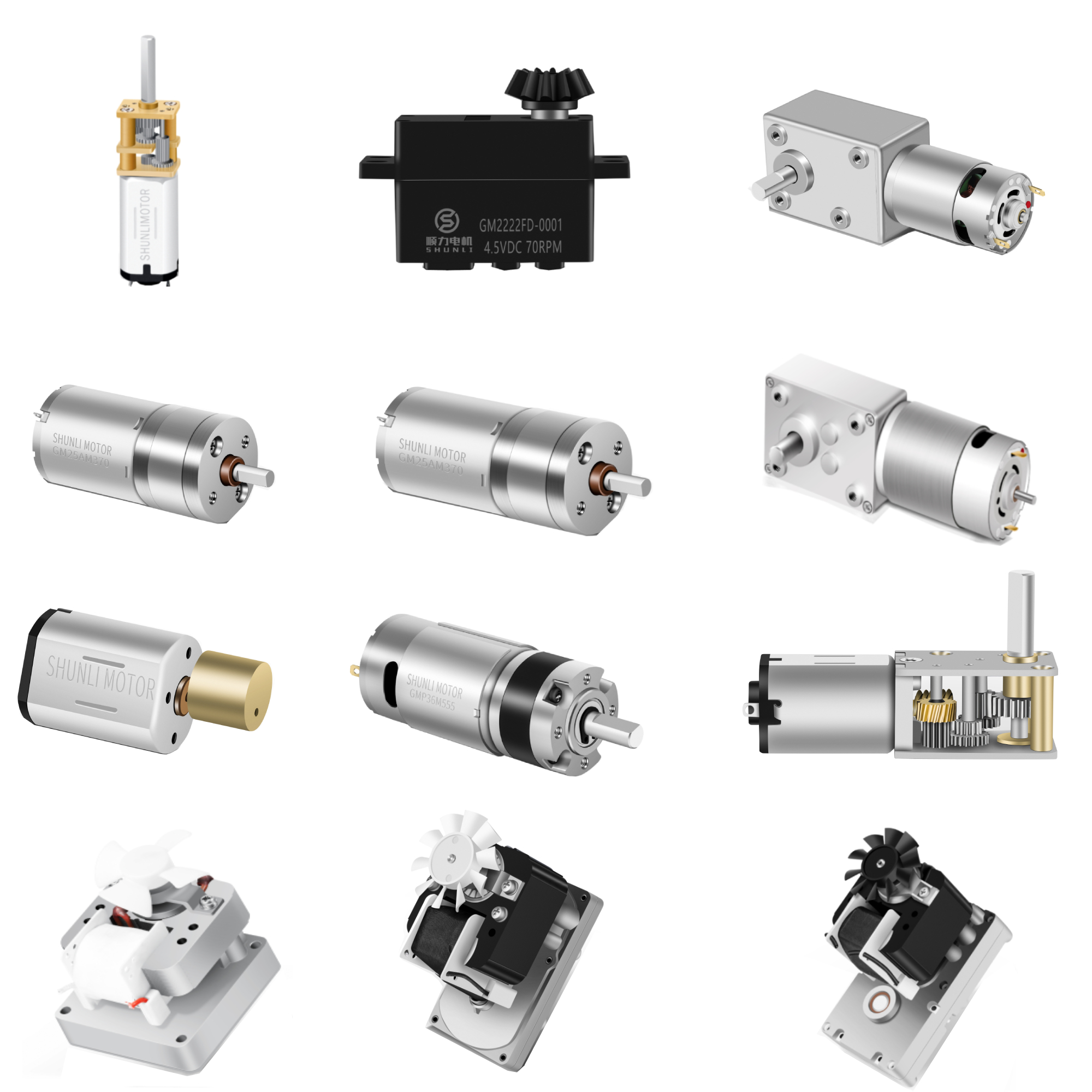

✨ Featured Products
📜 Certifications
⭐ Customer Evaluation
❓ FAQ (Frequently Asked Questions)
Q1 Are you a trading company or a manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional experience.
Q2 What is the payment term for new customers?
We support online payments via credit card (Mastercard, Visa, etc.) as well as PayPal and T/T (bank transfer).
Q3 I can't find a suitable motor on the website, can you customize it for me?
Yes, we can design and customize a suitable motor according to our customers' specific requirements.
Q4 Do you have certifications for the motors?
Yes, we have CE, FCC, ISO, and other key certifications. If you have additional certification requirements, we can apply for them as needed.
Q5 How is your Quality Control managed?
We have professional QC checking staff on every production line process. Once a motor is assembled, we use specialized quality machinery for comprehensive testing. This includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Q6 Can you customize motor shaft configurations and gear ratios?
Yes, we can customize output shaft shapes/lengths, gearbox ratios, operating voltages, and motor speeds to align with your design requirements.
