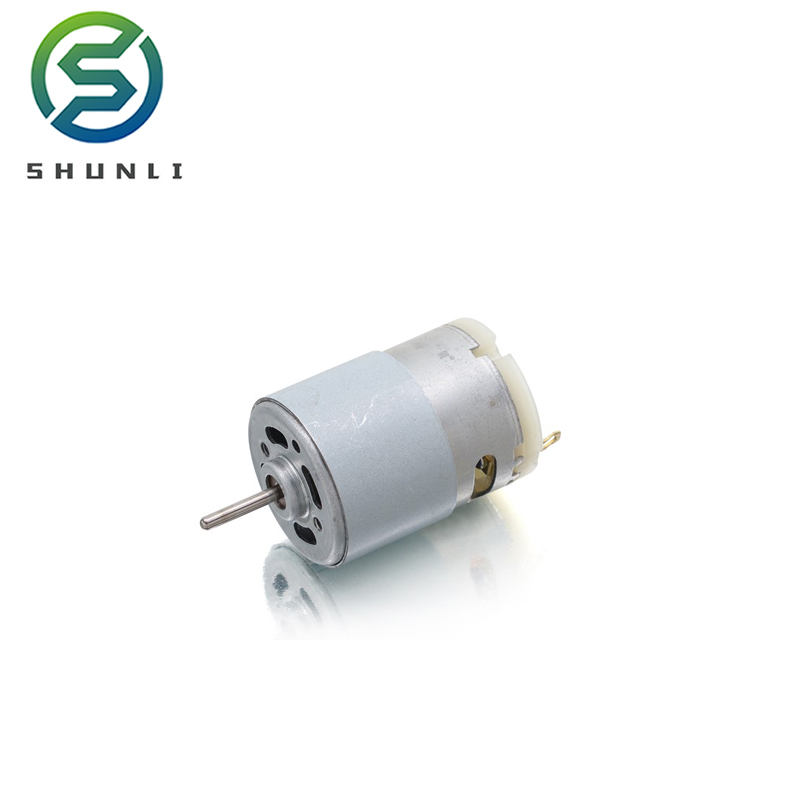

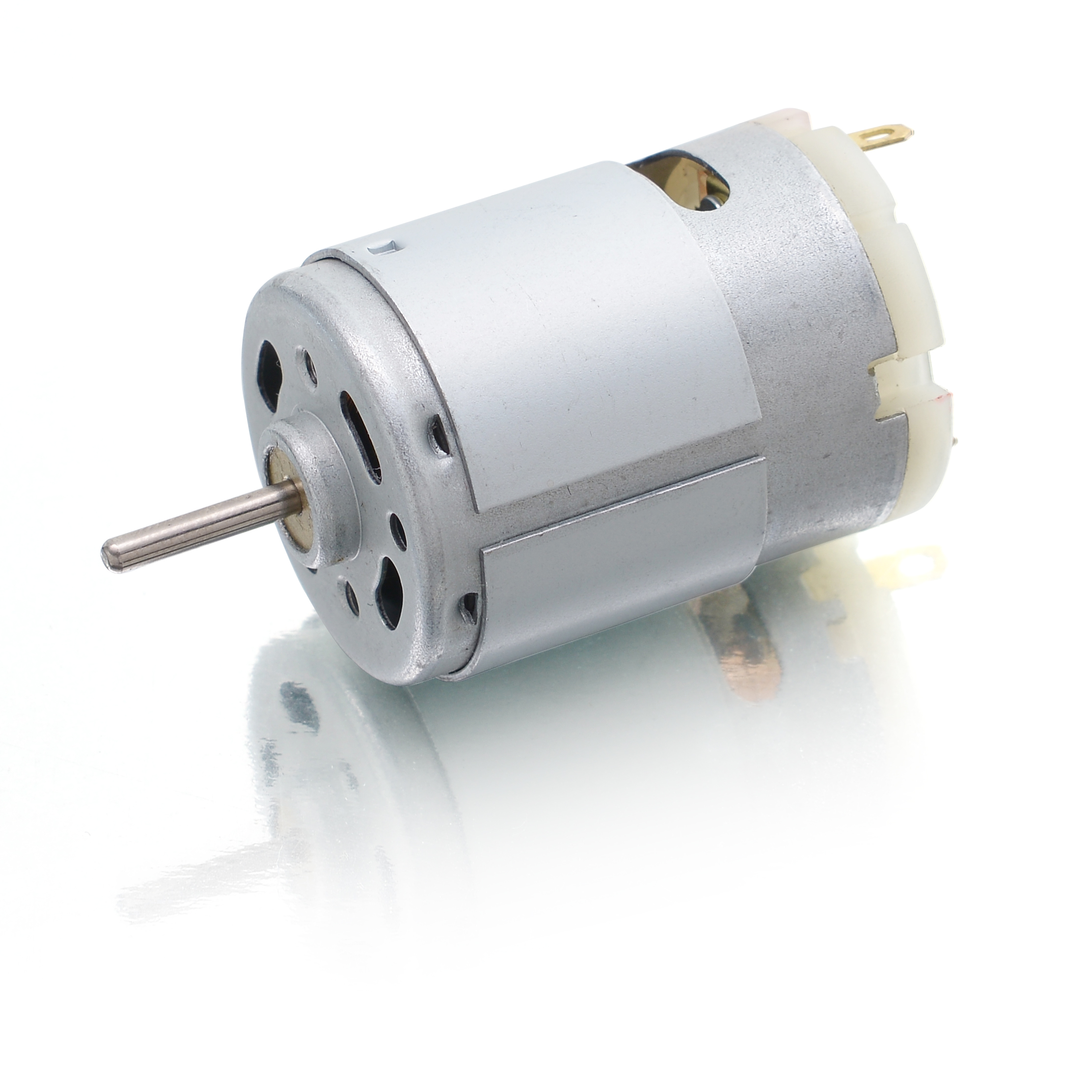

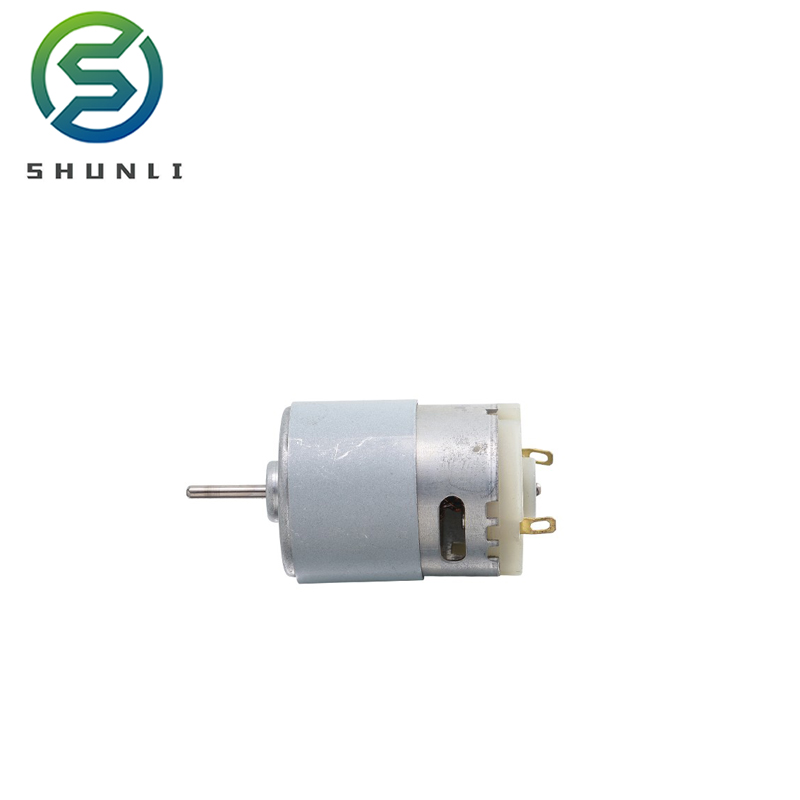

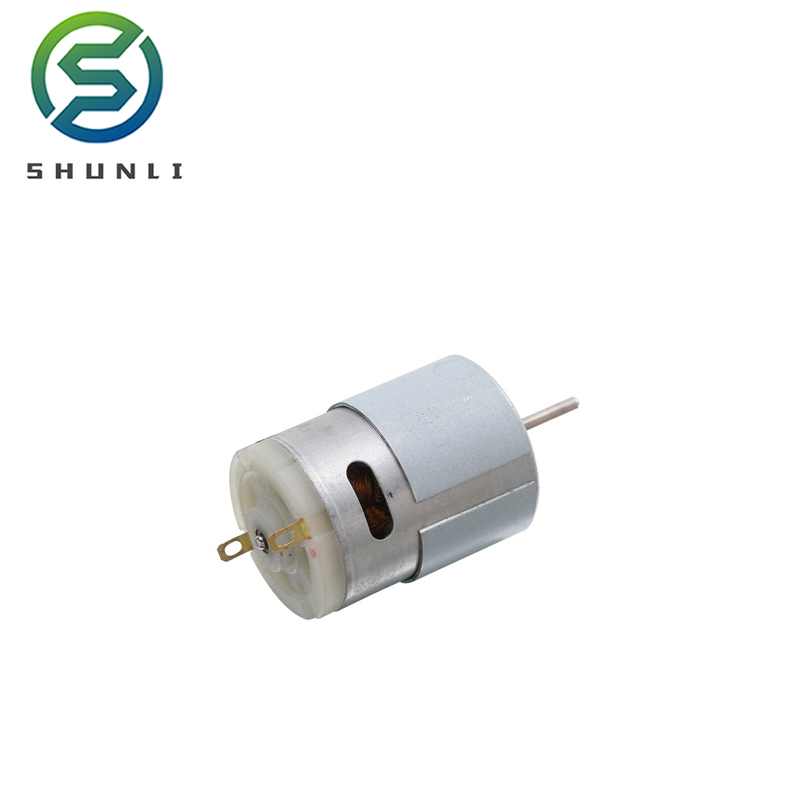

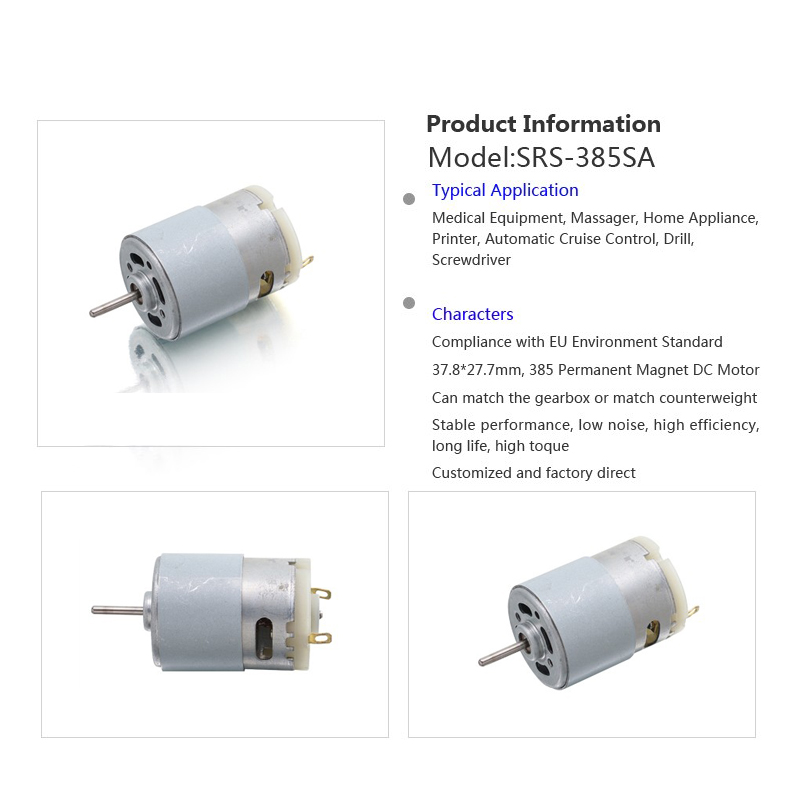

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available

📢Promotion

📋Product Description

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-380SH	4052	3.0~6.0	4.8VDC	7800	0.32	6701	1.95	9.9/101	6.98	11.9	70.6/720
RS-380SH	3557	6.0~12.0	12VDC	21200	0.44	18367	2.85	11.26/114.9	21.68	18.5	84.3/860
RS-385SH	17110	6.0~24.0	24VDC	11000	0.15	9034	0.69	10.7/109	10.12	3.16	59.8/610
RS-385SH	2267	6.0~12.0	12VDC	10000	0.17	8340	0.85	7.5/76.5	6.53	4.29	45/459

💡Application

🏢Our Company

Established in 2005, the high-tech enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. Products are exported to more than 50 countries and regions at home and abroad.

⚙️Production Process

🏅Certifications

❓FAQ

1Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

2What is the payment term for new customers?

We can draw up an Online Assurance Order for our new customers, which can be paid online with MasterCard, Visa, etc. Customers can also pay with PayPal or TT, etc.

3I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' requirements.

4Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.

5How is your Quality Control?

We have professional inspection staff on every production line process. After finishing the whole motor, we have complete quality machines to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester, etc.

6What is the operating voltage range of these micro motors?

The operating voltage range is typically 6.0V to 24.0V DC, with specific models rated for 4.8V, 12V, or 24V DC depending on your requirements.
