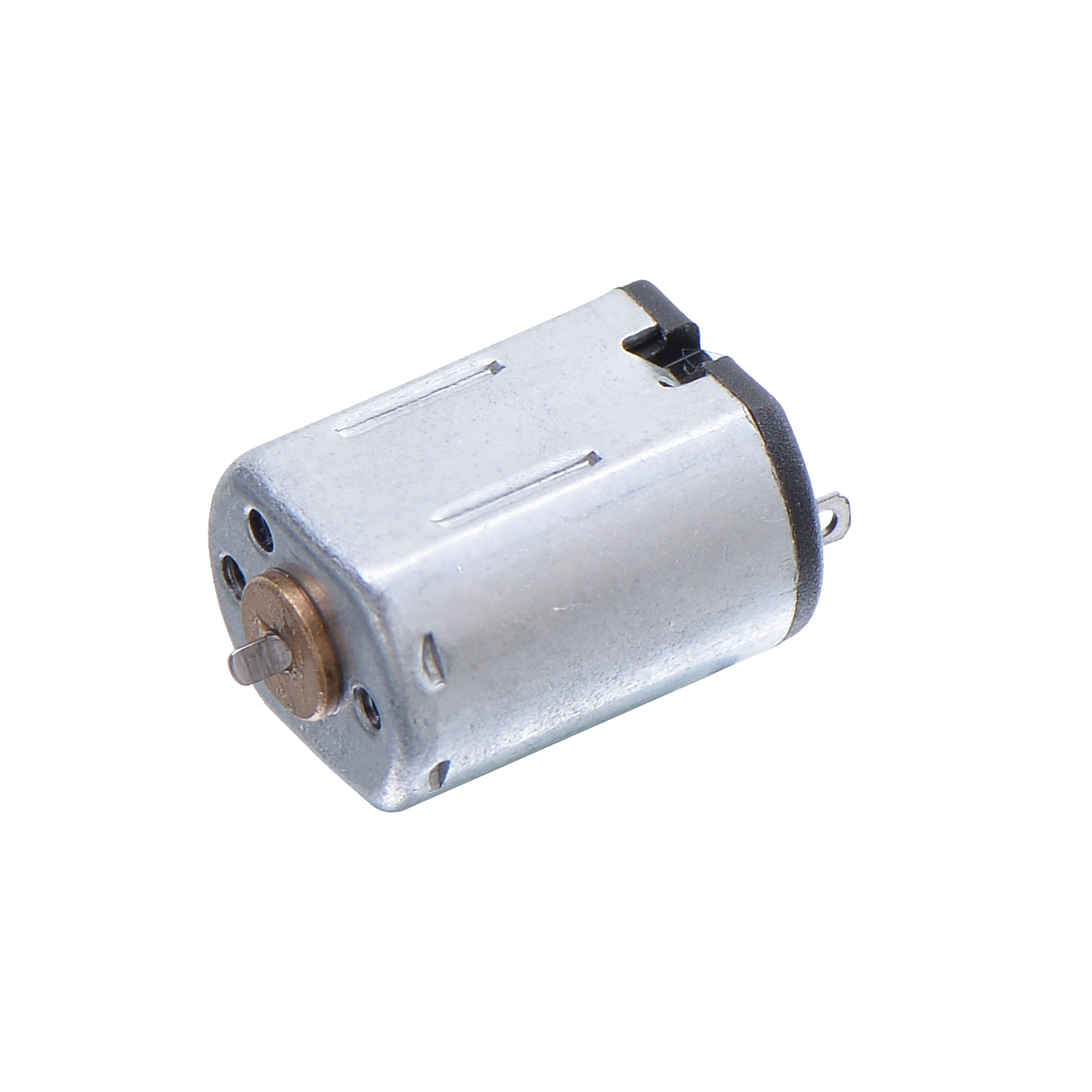

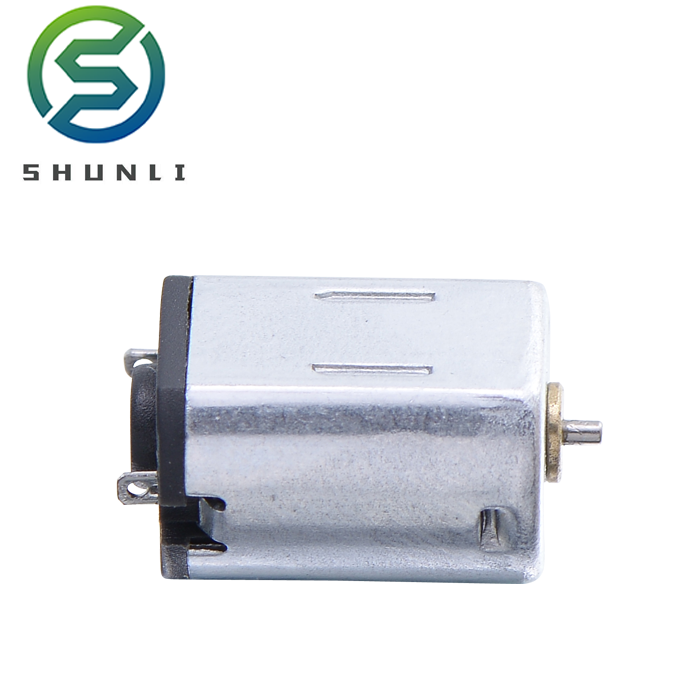

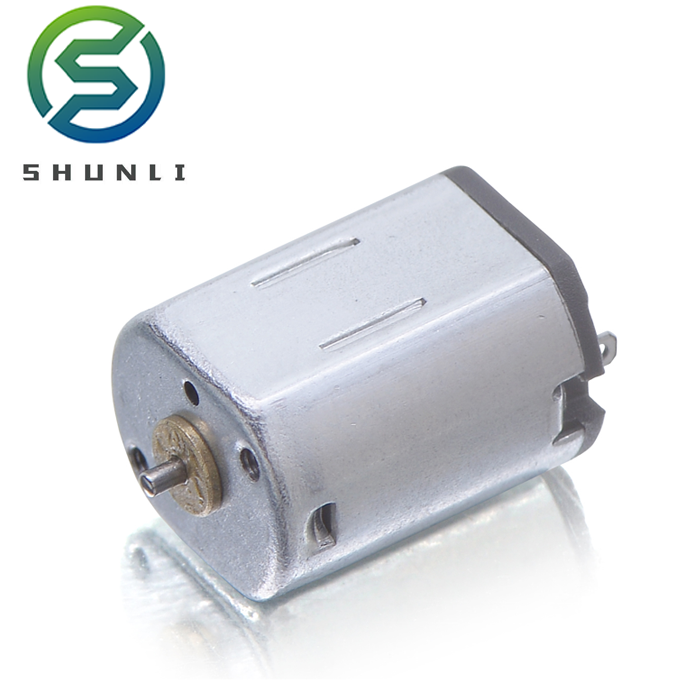

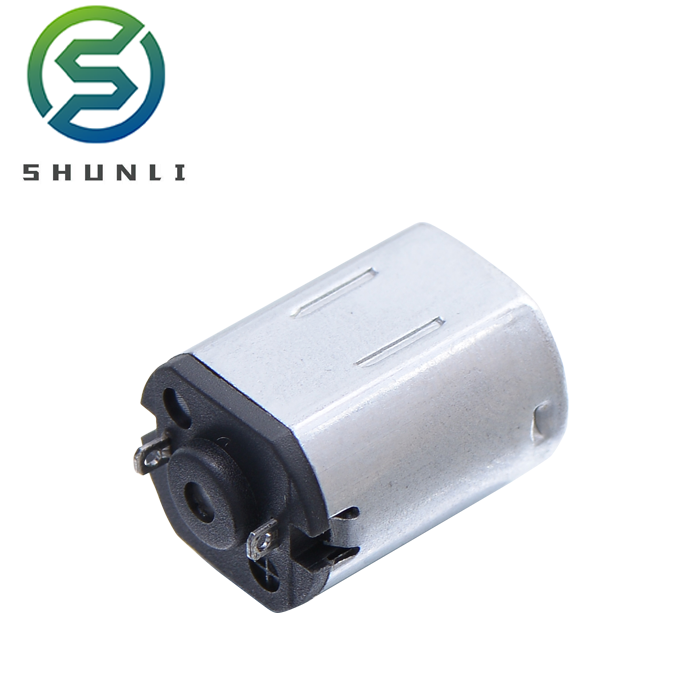

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor
Product Description
Promotion
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m/gf.cm) | Power (W) | Current (mA) | Torque (mN.m/gf.cm) | ||
| FF-N20VA | 05240 | 3.0~12.0 | 12 VDC | 16100 | 15 | 12240 | 60 | 0.3/3 | 0.37 | 210 | 1.2/12 |
| 08260 | 2.0~5.0 | 5 VDC | 14600 | 30 | 11800 | 110 | 0.26/2.6 | 0.31 | 470 | 1.3/13 | |
| FF-N20TA | 2818 | 0.8~1.5 | 12 VDC | 34000 | 70 | 31000 | 1140 | 0.2/2 | 0.64 | 6000 | 1.6/16 |
Application
Certifications
Why Choose Us

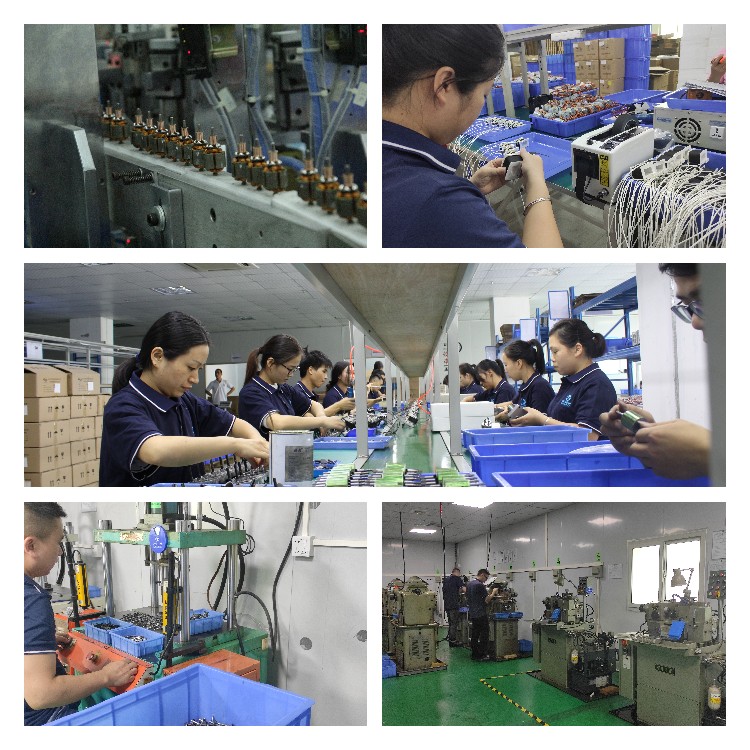

1. Company Strength
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant experience.
2. Quality Control
In order to confirm quality, from the receipt of materials to shipment, every step of the way is carefully checked. Quality is the basis of our development.
Our Services
We are gold seller and in possession of high credibility
100% on-time delivery rate confirms your product arrives timely.
Samples will be produced within 2 weeks. Customized samples within 3 weeks.
Timely reply: your message will be replied within 2 hours.
Frequently Asked Questions
1. Are you a trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors with over 14 years of production experience.
2. What is the payment term for a new customer?
We can draw up an Online Assurance Order, which allows payments online via Master Card, Visa, etc. Customers can also pay with PayPal or T/T.
3. Can you customize a motor if I cannot find a suitable one on your website?
Yes, we can customize a suitable motor design according to our customer's specific technical requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other standard certificates. If you require other specific certificates, we can apply for them on your behalf.
5. How is your Quality Control managed?
We have professional inspectors checking every step of the production process. Completed motors are tested using comprehensive quality machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, Noise Testers, and more.
6. What voltage specifications are available for the SFF-N20VA motor?
The SFF-N20VA motor supports customized configurations including 1.5V, 3V, 4.5V, and other customized operational ranges depending on your project needs.
