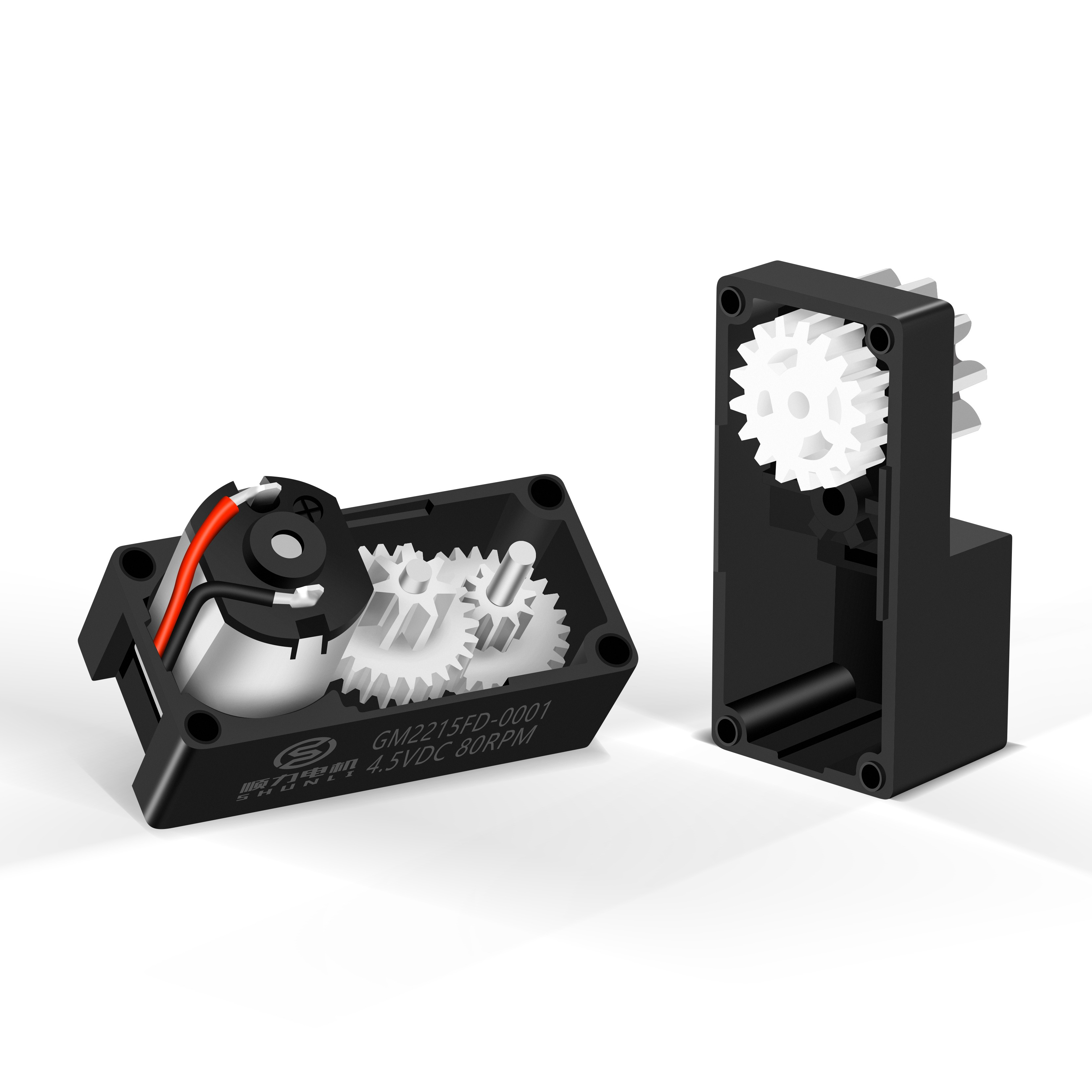

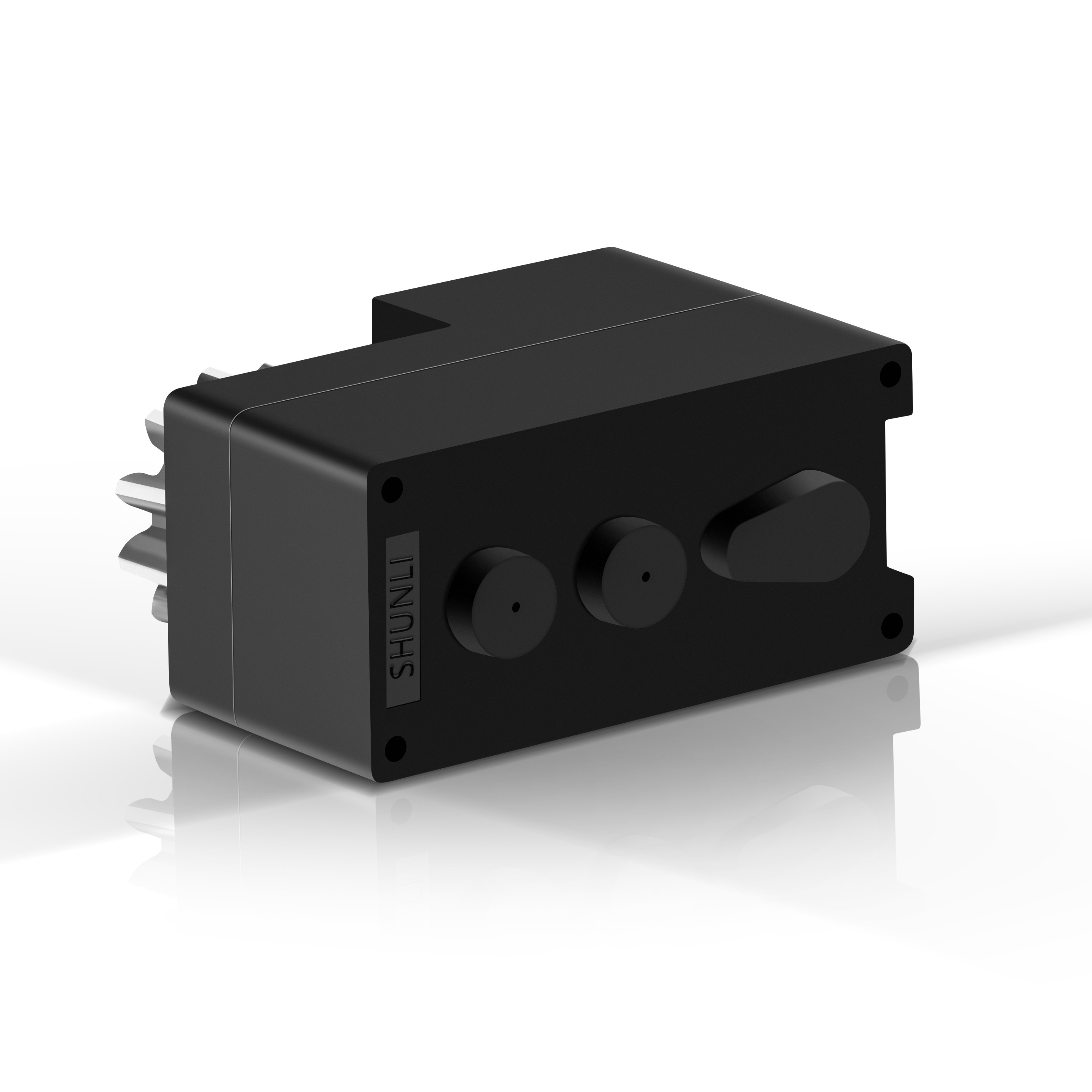

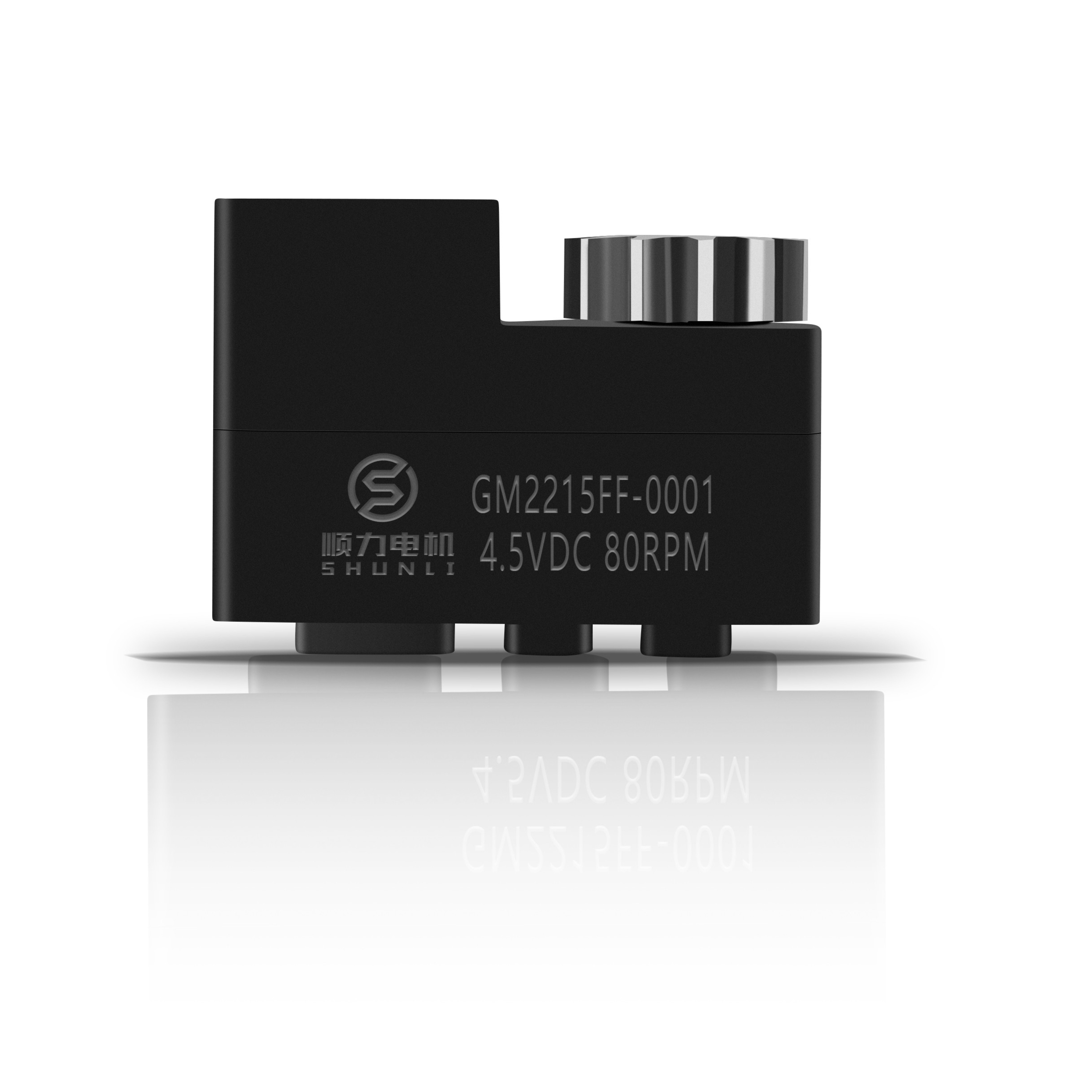

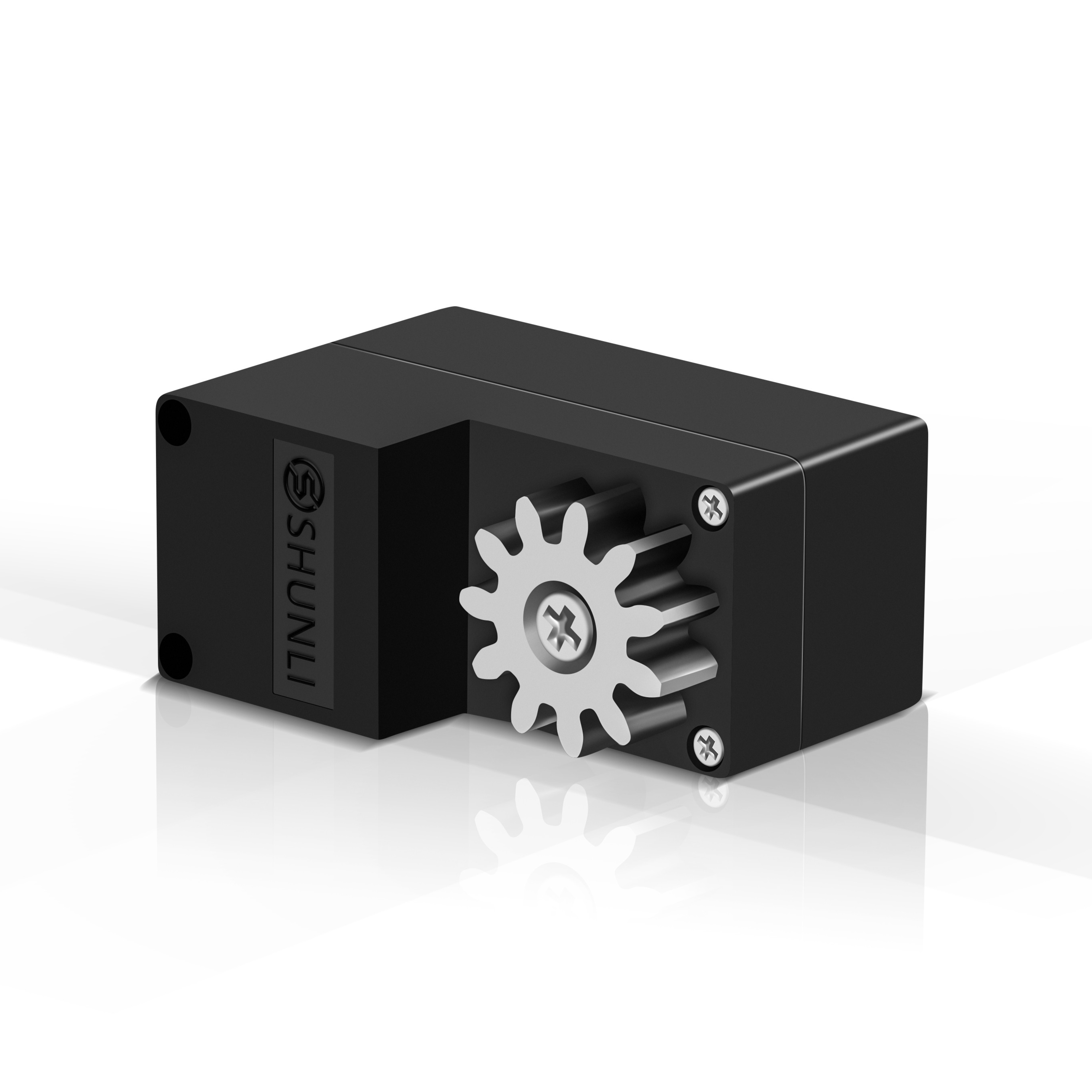

4.5v Dc Gear Motor for Electric Lock Low Rpm 60rpm Shunli Permanent Magnet Brush Customized 30-100RPM
Product Description
✨
Promotion Overview
⚙️
Product Description
Specification Data
📊
Gearbox Technical Data
| Parameter Item | Technical Specifications |
|---|---|
| Ratio | 241k |
| Max. Rated Torque | 1.5 ~ 2.0 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
⚡
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM2215FMN20-241K | 1 : 241 | 4.5 VDC | 43 | ≤ 50 | 34 | ≤ 120 | 25 / 250 | ≤ 350 | 0.15 / 1.5 |
| 58 | ≤ 65 | 50 | ≤ 130 | 28 / 280 | ≤ 680 | 0.18 / 1.8 | |||
| 68 | ≤ 75 | 56 | ≤ 140 | 30 / 300 | ≤ 750 | 0.2 / 2.0 | |||
🔋
PMDC Motor Technical Data
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 680 | 1.5 / 15 | |
| 04516500 | 4.5 VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25 / 2.5 | ≤ 750 | 1.8 / 18 | |
💡
Product Applications
💬
Customer Evaluation
📜
Certifications
🛡️
Why Choose Us
1. Manufacturing Expertise
We are a specialized motor manufacturing facility with over 14 years of production experience. Our professional R&D team and mature management guarantee a reliable and seamless manufacturing process.
2. Strict Quality Control
Quality is the absolute foundation of our operations. From incoming raw materials to final shipments, every manufacturing stage is thoroughly inspected to ensure total reliability.
❓
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We have specialized in micro DC motors and DC gear motors for over 14 years.
Q2: What is the payment term for a new customer?
A: We can arrange secure trade assurance orders online, allowing payments via Credit Card, Visa, PayPal, or TT wire transfers.
Q3: I cannot find a suitable motor model on your site, can you customize it?
A: Yes, we customize motor specifications (including voltage, speed, torque, dimensions, and shaft designs) to meet client specifications.
Q4: Do you have official certificates for your motor products?
A: Yes, our motors are certified with CE, FCC, ISO, and other relevant standard credentials. We can apply for specific country certifications if required.
Q5: How is your Quality Control managed?
A: Professional quality assurance inspectors check every stage of production. Finished motors undergo rigorous testing utilizing advanced equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
Q6: Can I request product samples before placing a bulk order?
A: Yes, we provide prototype samples for evaluation, allowing you to test functional performance and compatibility with your devices before full-scale manufacturing.
