775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor
Product Description

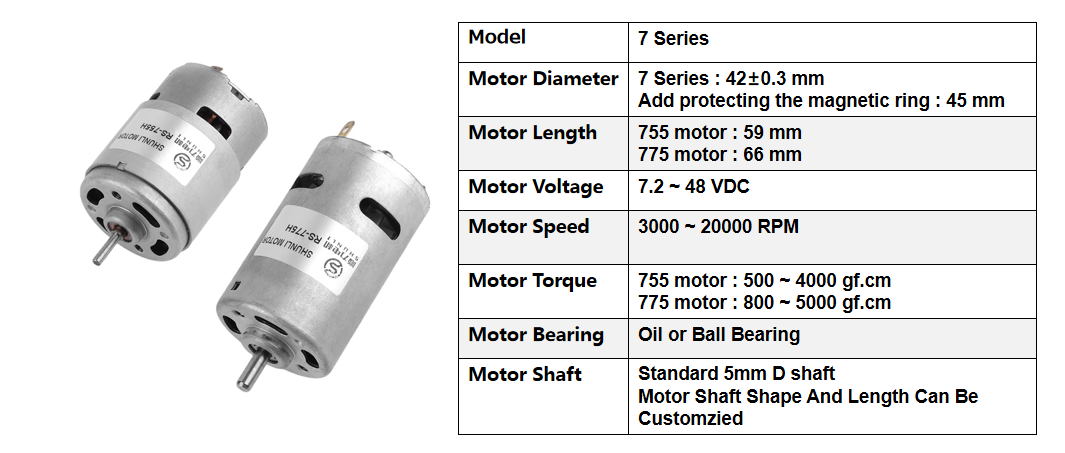

775 DC Motor for Power Tools Low Price Motor 12v 24v DC Motor

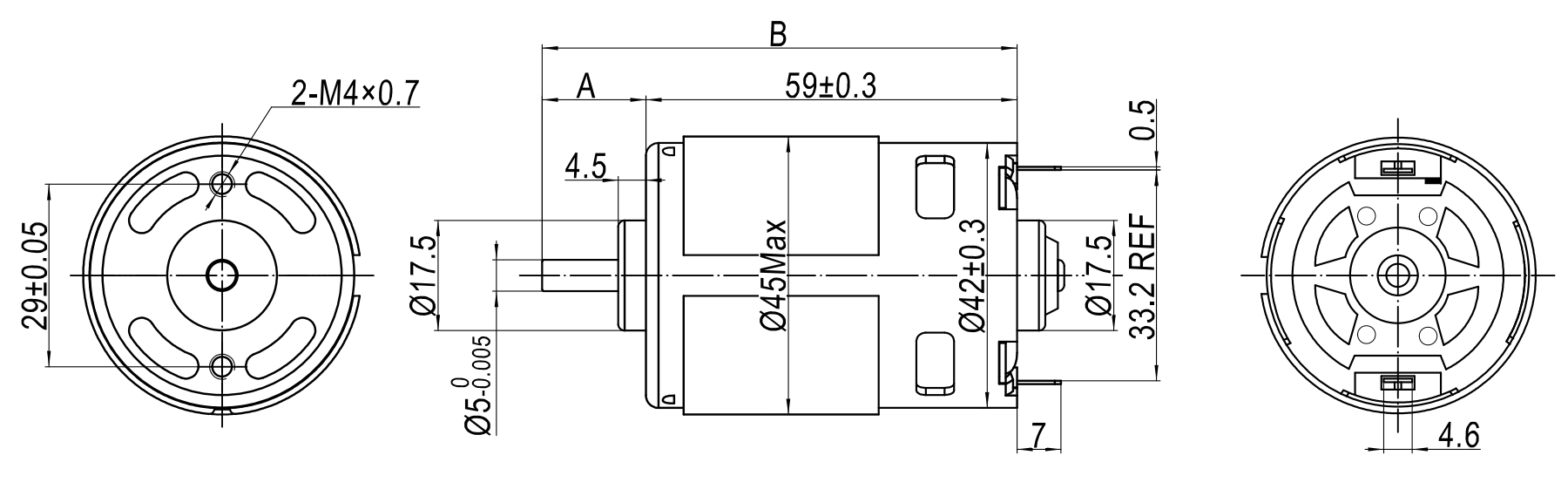

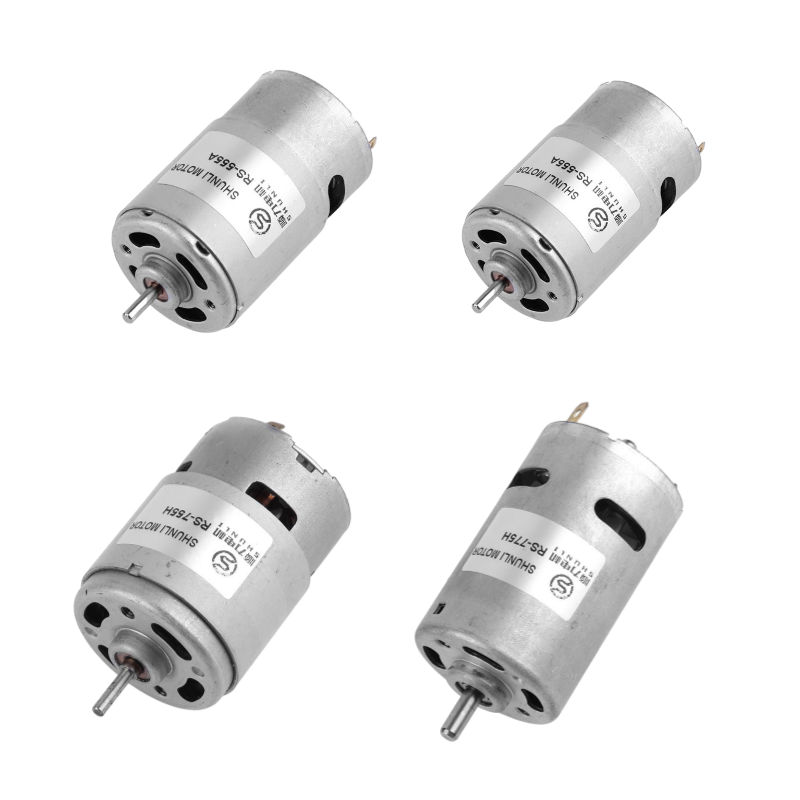

------ RS - 755 H

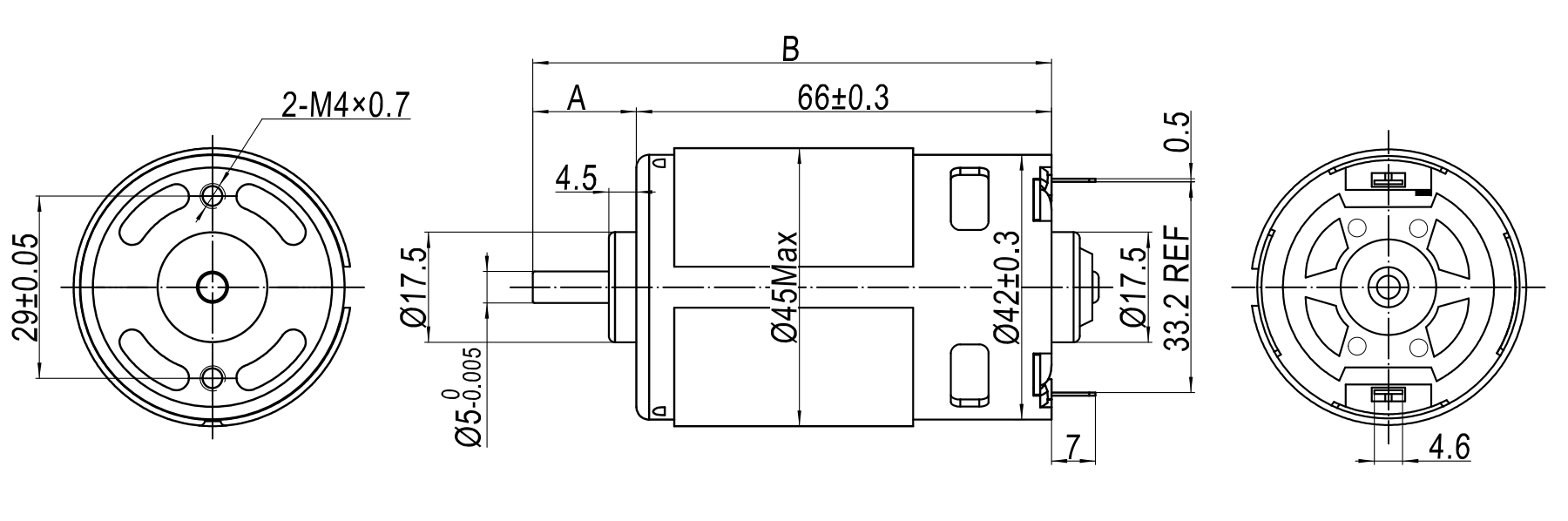

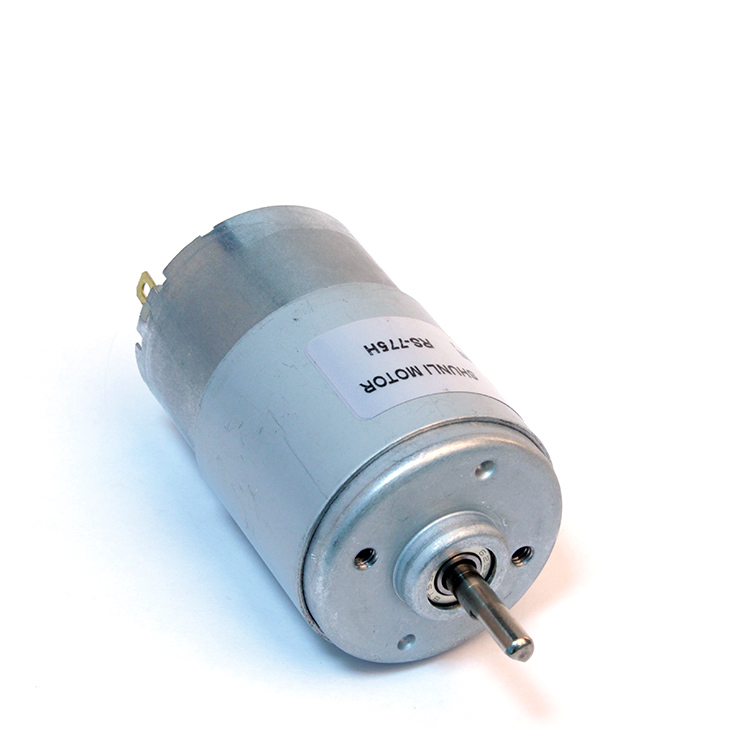

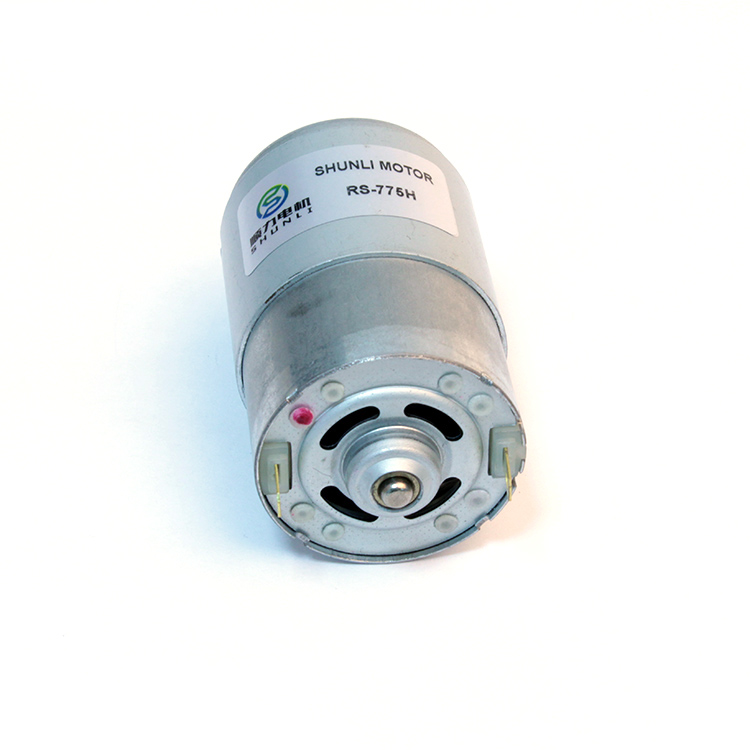

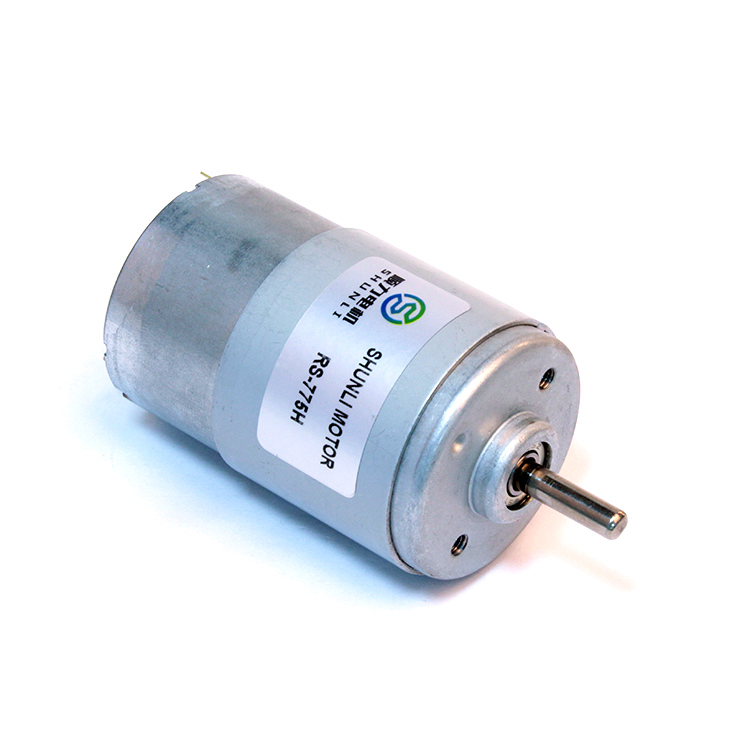

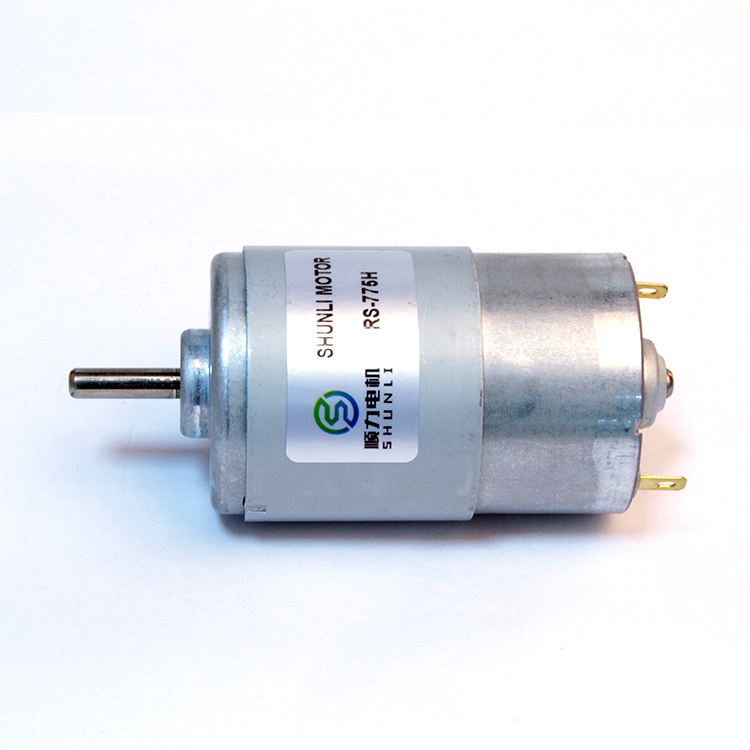

------ RS - 775 H
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 / 826.2 | 111.8 | 115 | 666.9 / 6802 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 / 452.9 | 13.35 | 4.07 | 245.7 / 2506 |
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor, such as a Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q: Can the motor specifications and shaft length be customized?
A: Yes, customized motor specifications and shaft lengths can be fully tailored according to your specific requirements.
