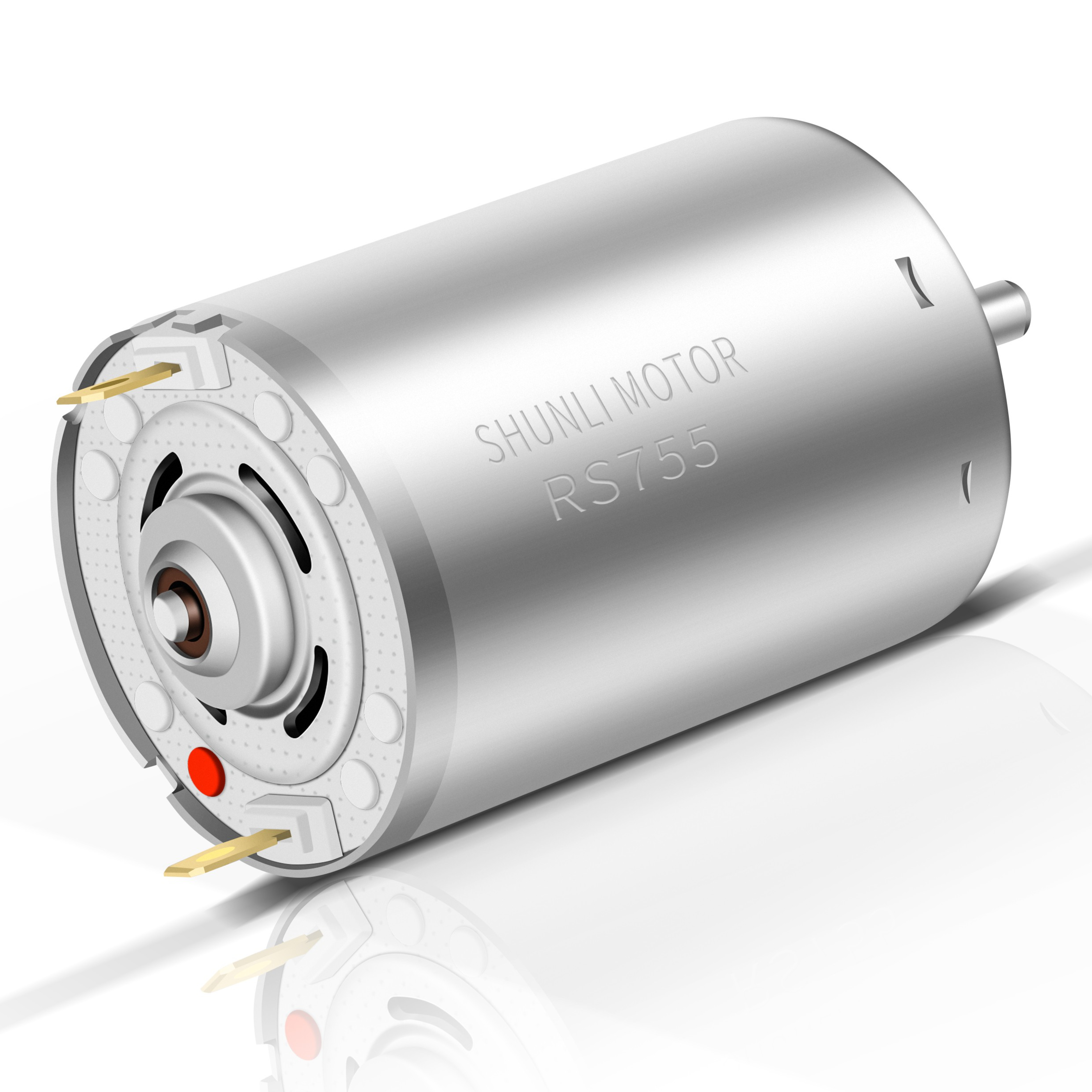

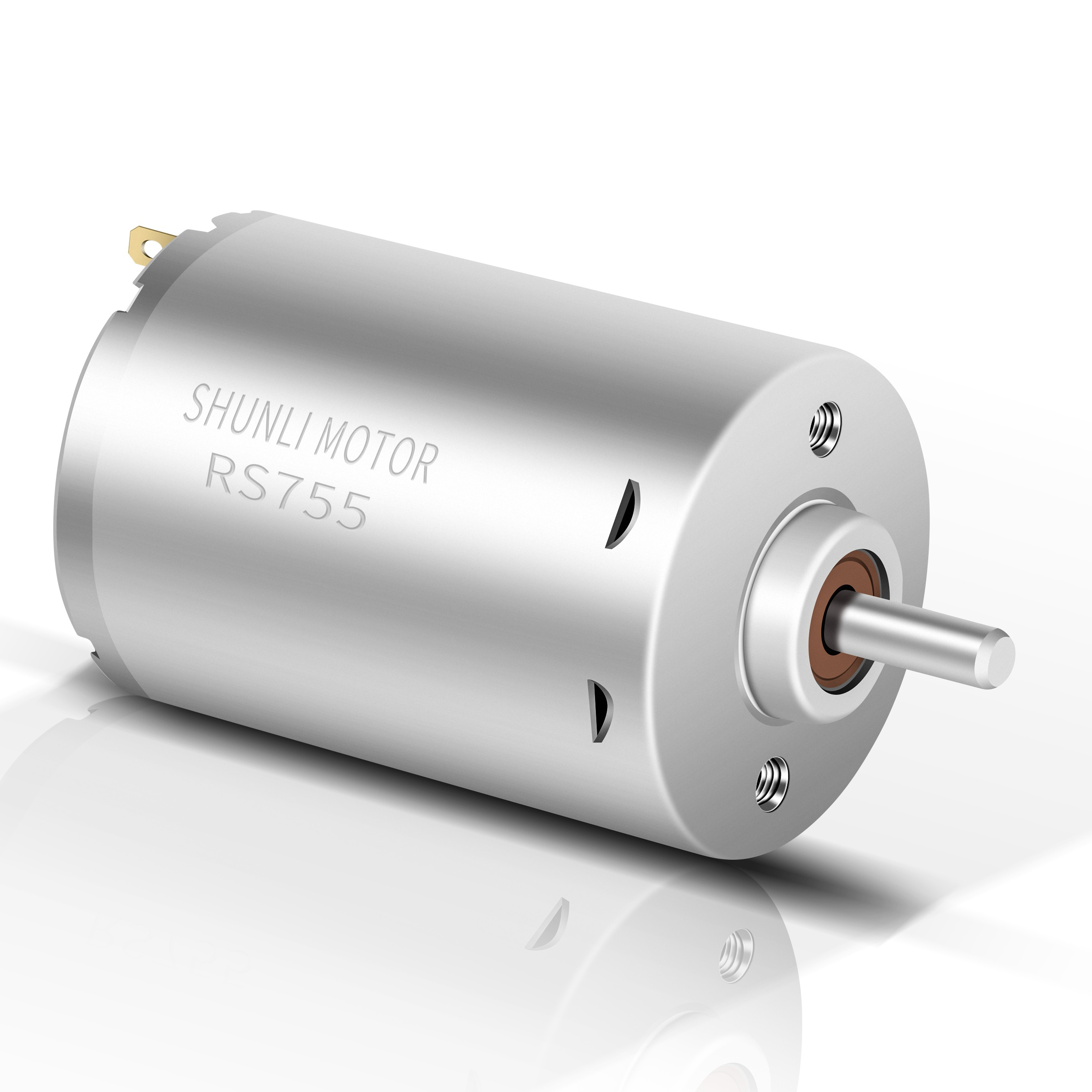

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor
Product Description
Product Description
Powerfull 20000rpm RS 775 Mini High Speed 24 Volt DC Motor
Motor Customized Specification, Please contact me.

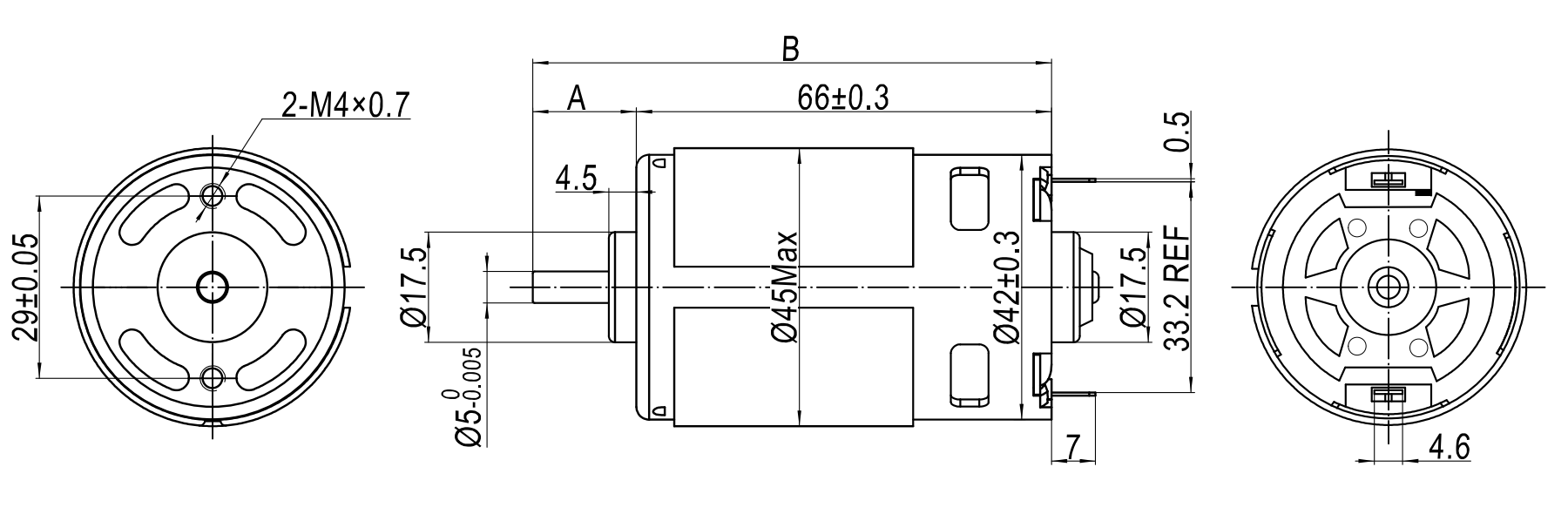

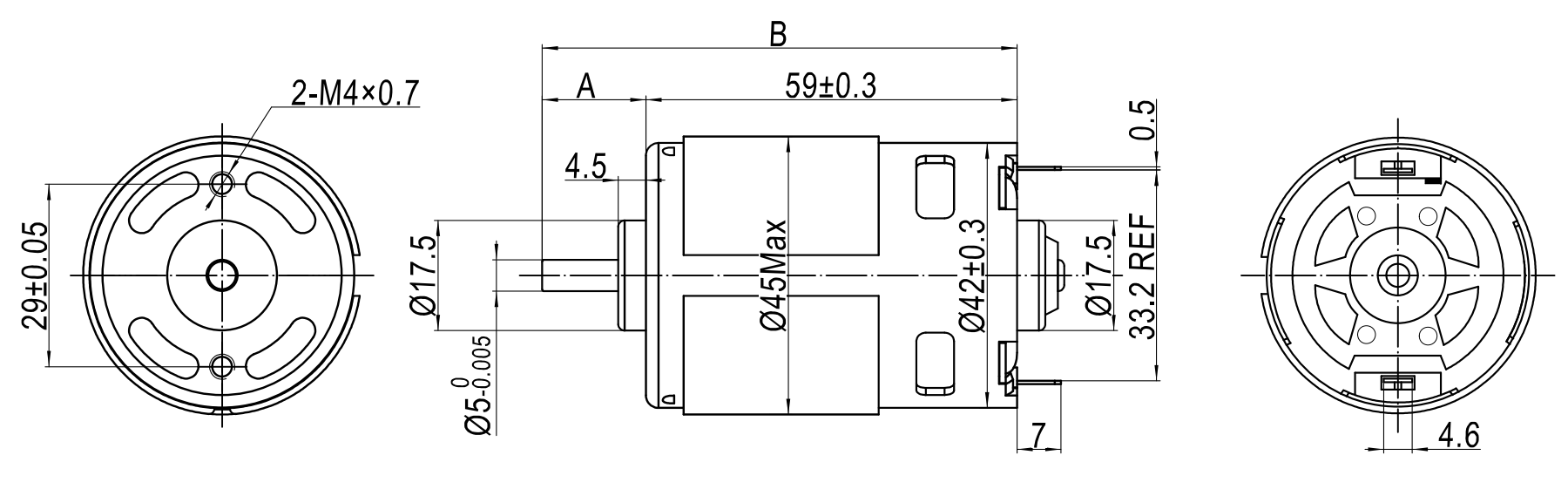

Reference Drawing
------ RS - 755 H
------ RS - 775 H
The length of shaft can be customized, Please contact me.
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81/826.2 | 111.8 | 115 | 666.9/6802 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4/452.9 | 13.35 | 4.07 | 245.7/2506 |
Application
Certifications
Recommend Product
Frequently Asked Questions (FAQ)
1. Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online via MasterCard, Visa, etc. Customers can also choose to pay with PayPal or T/T wire transfers.
3. I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific application requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant standard qualifications. If you have other specific certificate requirements, we can apply for them as needed.
5. How is your Quality Control managed?
We have professional checking staff on every production line process. After completing each motor, we utilize advanced inspection machinery to conduct tests, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
6. What is the typical lead time for customized orders?
Standard customization orders generally take 20 to 30 days for production, depending on the complexity of the specifications and the order quantity.
