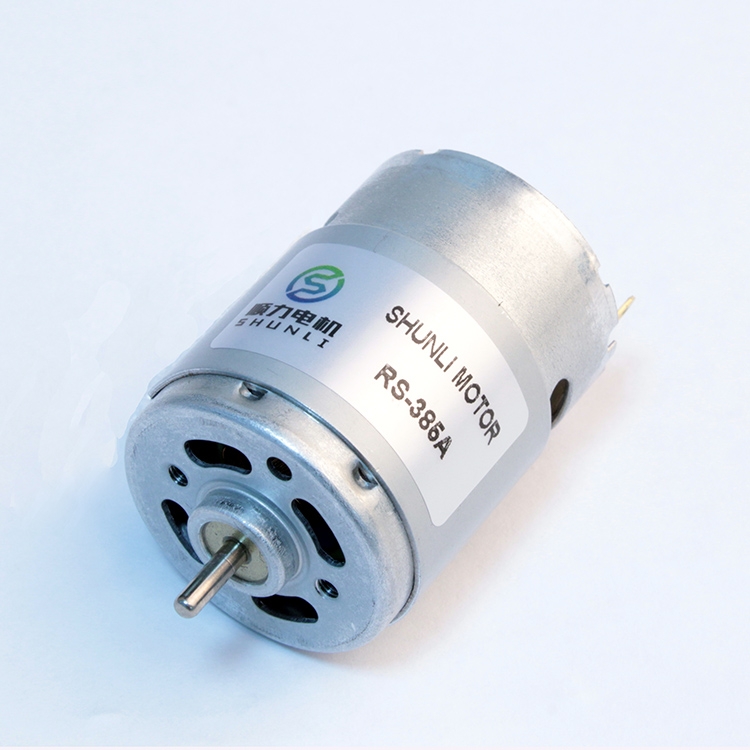

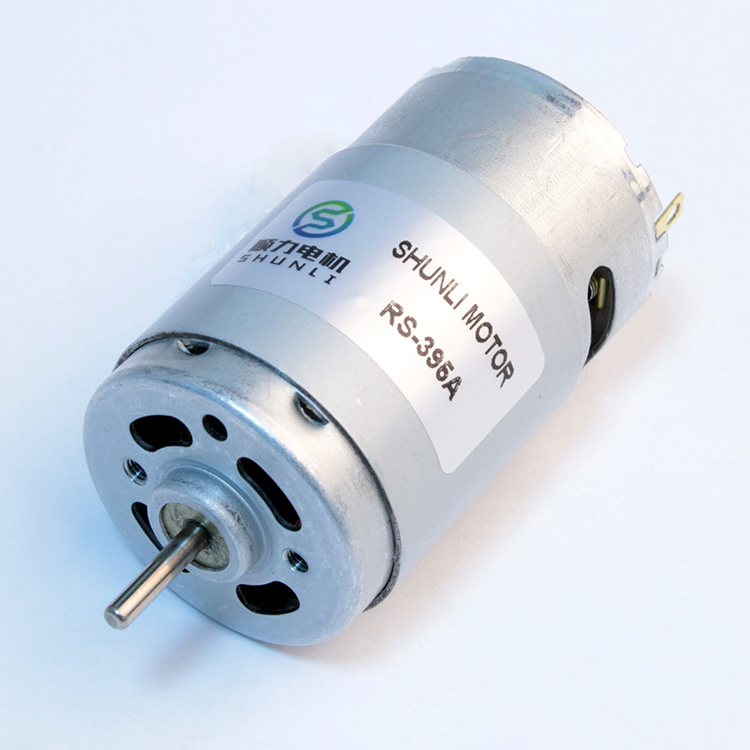

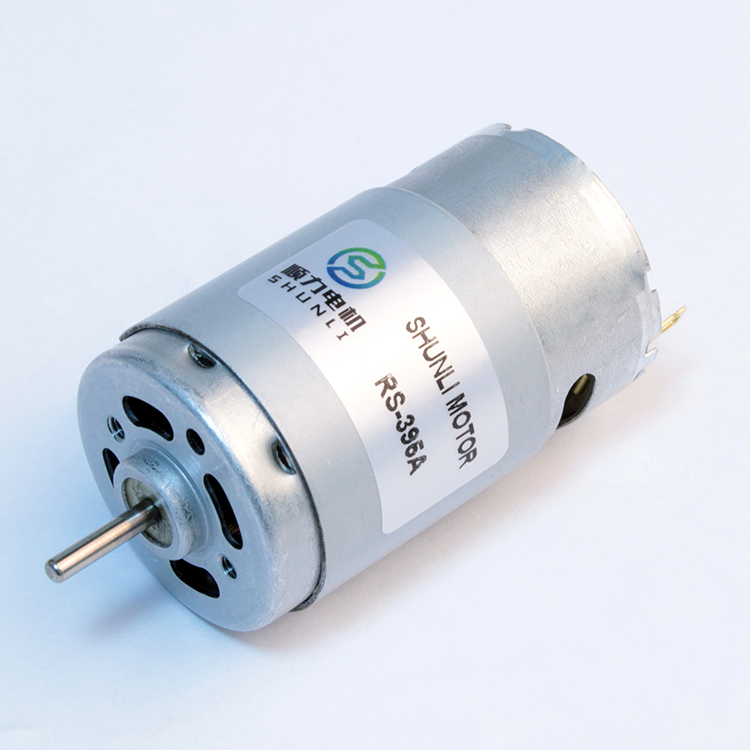

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless
Product Description
Product Description
Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor
Product Details
Motor Customized Specification, Please contact me.
Reference Drawing

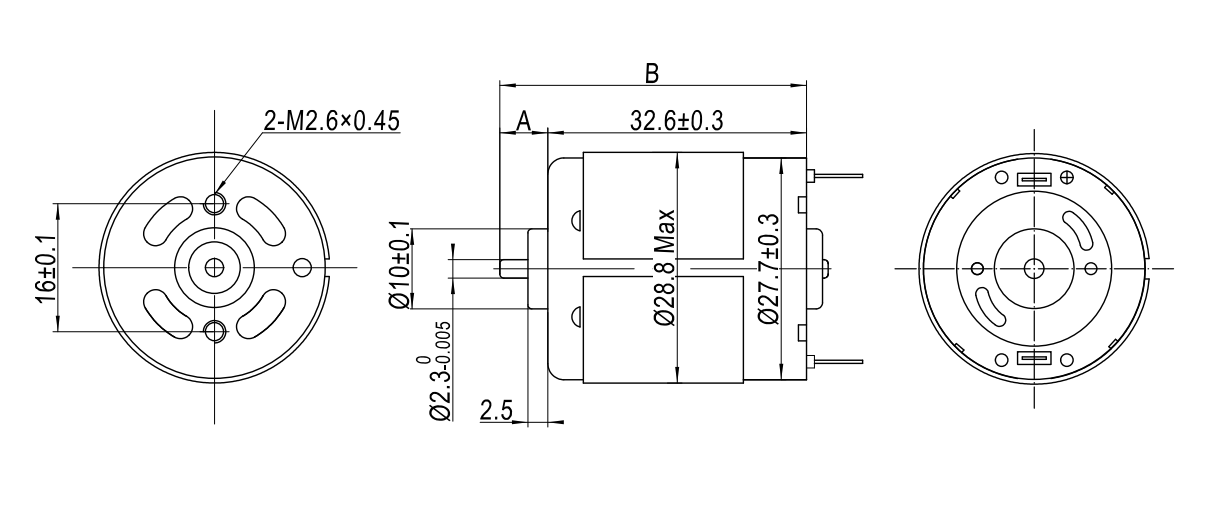

------ RS - 365

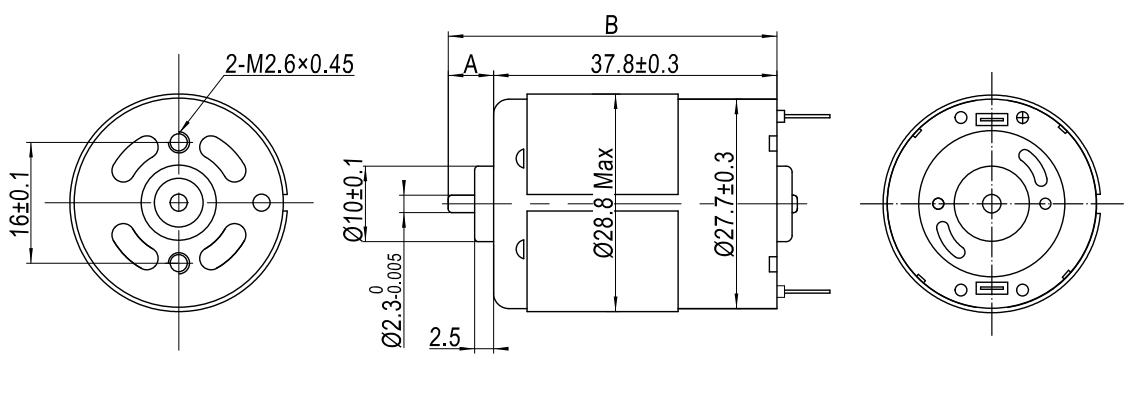

------ RS - 385

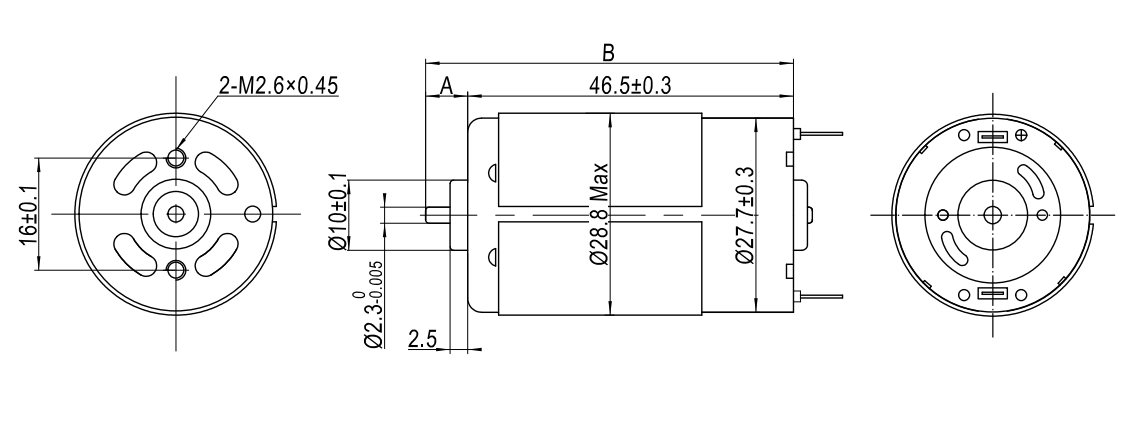

------ RS - 395
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Date | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Recommend Product
Contact Us
Looking forward to your feedback!
————————
Frequently Asked Questions (FAQ)
What are the primary applications for the 390PH 12v DC Motor?
The 390PH 12v DC Motor is professionally designed for high-performance applications such as hair dryers, micro vacuum cleaners, and various personal care or smart home appliances requiring efficient performance.
Can the motor specifications and shaft length be customized?
Yes, we offer custom manufacturing services. Both the technical specifications of the motor and the length of the shaft can be fully customized according to your specific product requirements.
What is the typical operating voltage for the RS-390 and RS-395 motor series?
The typical nominal operating voltage is 12VDC. However, the RS-390SH operating range spans from 6.0V to 12.0V, and the RS-395SH model supports up to 24.0V depending on the specific model type.
What range of no-load speed (RPM) do these PMDC motors achieve?
Under no-load conditions, the motor speed ranges from 3,650 RPM (for RS-395SH 15130 at 12V) up to 12,000 RPM (for RS-390SH 2975 at 12V), allowing for versatile speed configurations.
Are both brushed and brushless motor options available?
Yes, custom manufacturing support includes configurations for both brushed and brushless micro DC motor options depending on your device requirements.
