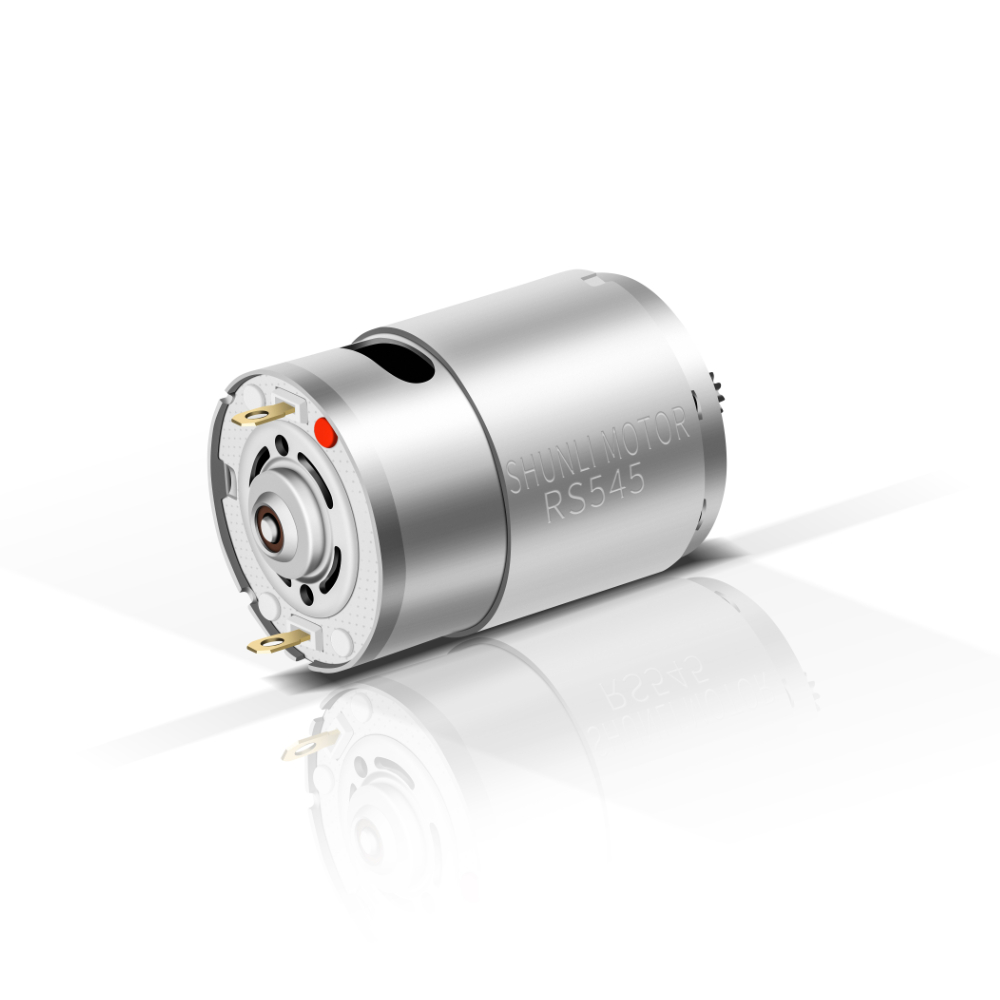

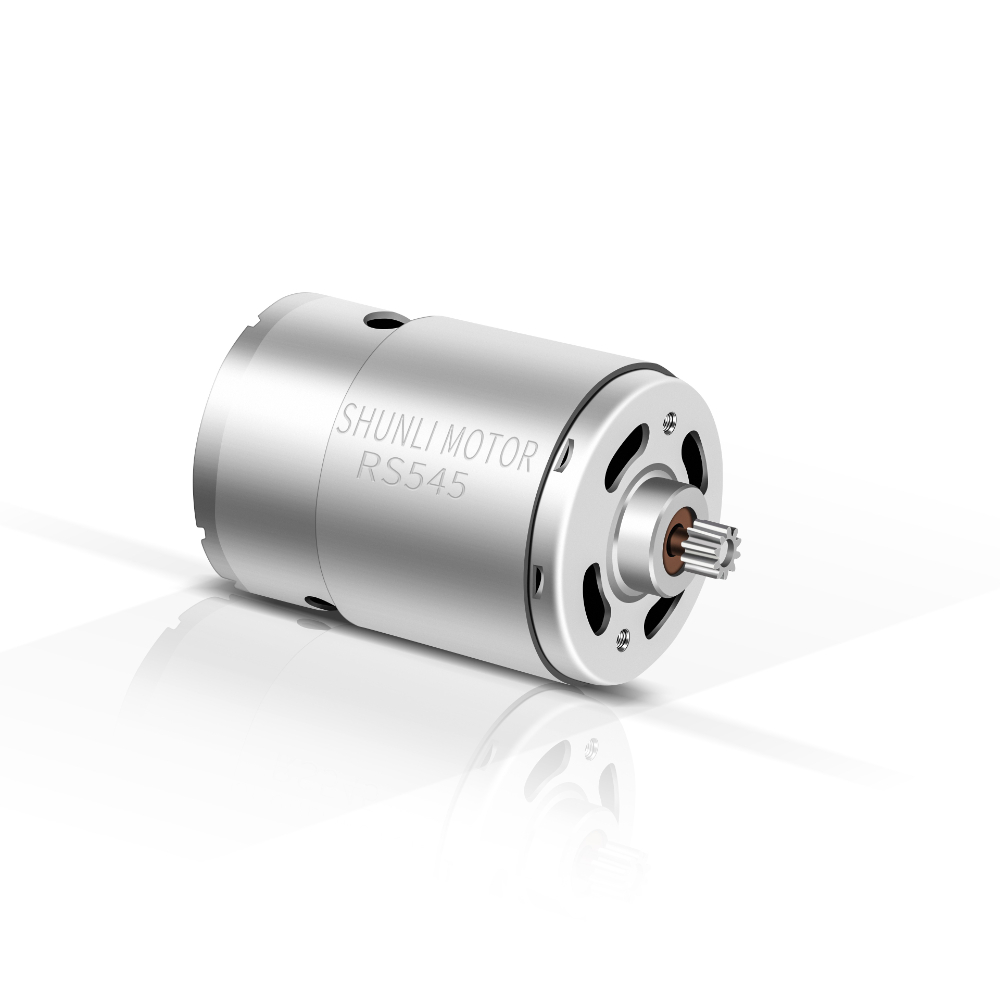

Shunli 6v 12v Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 with the Lowest Price
Product Description
Product Description
6v 12v 24v 15000 rpm dc motor rs-555 with the lowest price
📌
Product Details
⚙️
Motor Customized Specification is available. Please contact for details.
📐

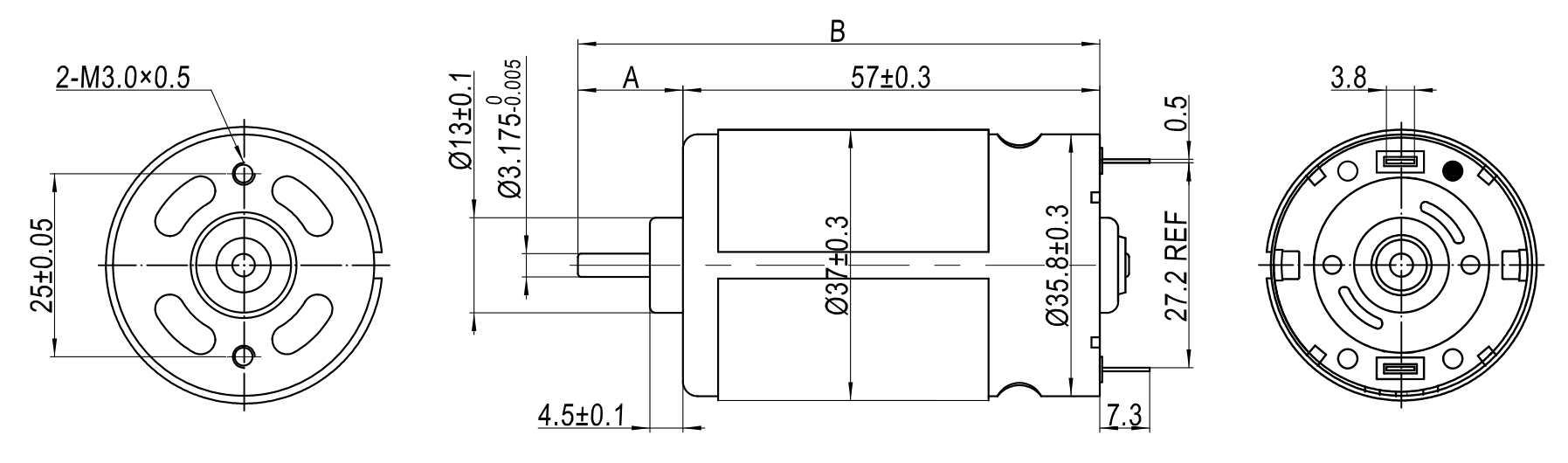

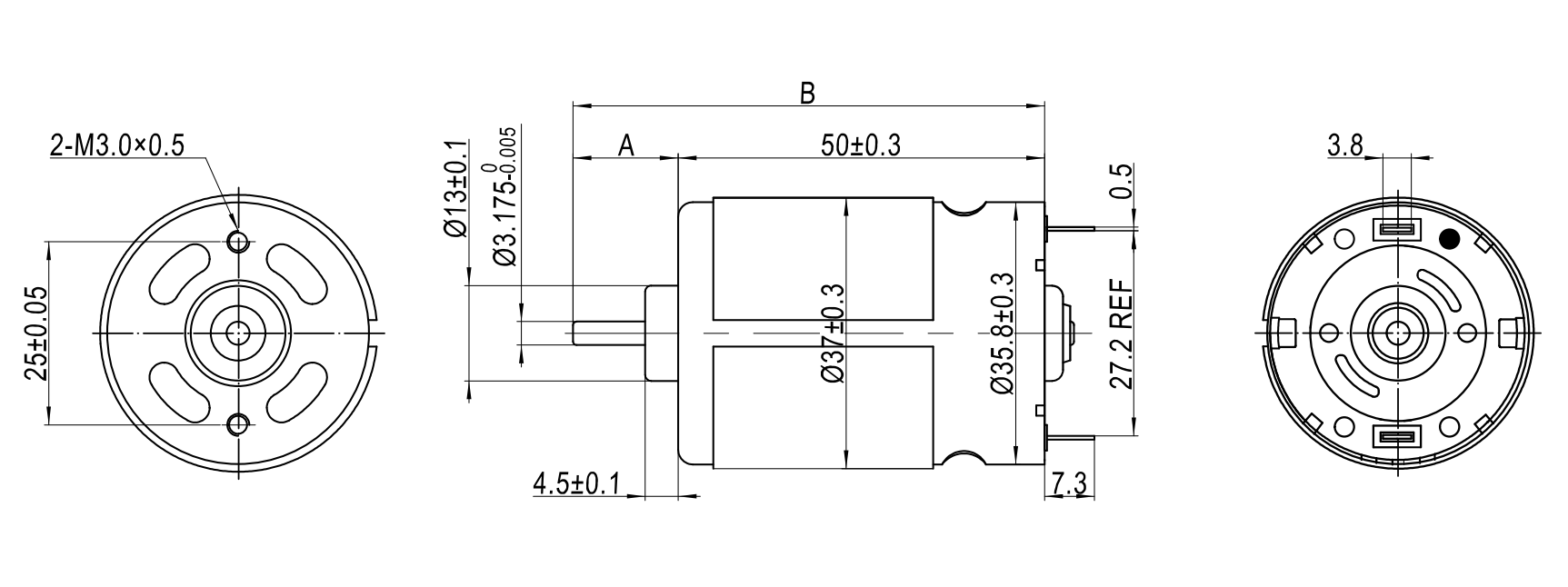

Reference Drawing
------ RS - 545 A
------ RS - 555 A
------ RS - 575 A
🔧
The length of shaft can be customized, please contact for details.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |
Application
Certifications
Why Choose Us
1. Experienced Production
We are a factory specializing in producing motors for more than 14 years. A professional R&D team and mature management will bring you a pleasant purchasing experience.
2. Quality Control
In order to confirm quality, from the moment we receive raw material to the final shipment, every step of the way is carefully checked. Quality is the basis of our development.
FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can establish a Secure Online Order for our new customers, which can be paid online via credit card, wire transfer, or PayPal.
Q3: I cannot find a suitable motor on your website. Can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customers' specific requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can apply for them for you.
Q5: How is your Quality Control?
A: We have professional inspection staff on every production line process. After finishing the assembly, we use dedicated testing machines (including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers) to inspect the motors.
Q6: What is the typical lead time for production?
A: Lead time depends on the motor specifications and order quantity. Usually, standard samples take about 7 to 15 days, and bulk orders take about 3 to 4 weeks.
